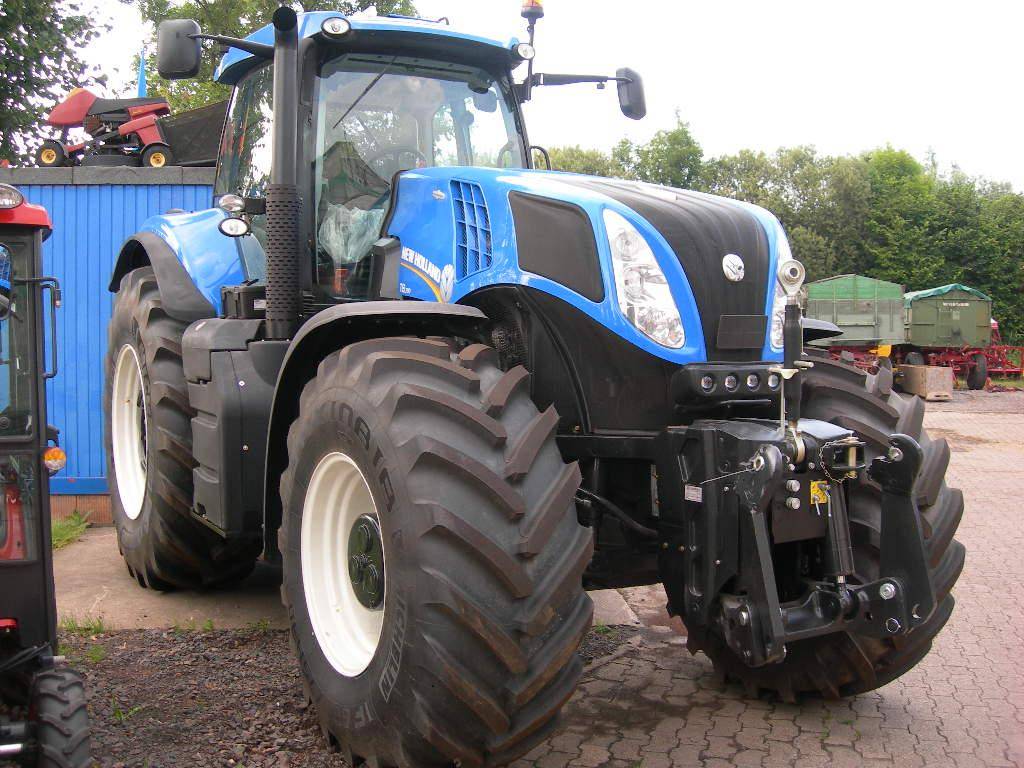

New Holland T8.350 Production
Manufacturer:
New Holland
Type:
Row-Crop tractor
Factory:
Racine, Wisconsin, USA
Original price:
$279,219 (2016 powershift )
Engine:
Engine (gross):
280 hp 208.8 kW
Engine (max):
351 hp 261.7 kW
PTO (claimed):
235 hp 175.2 kW
Drawbar (tested):
213.10 hp 158.9 kW
PTO (tested):
296.56 hp 221.1 kW
Ground:
negative
Charging system:
alternator
Charging amps:
200
Batteries:
2
Battery volts:
12
Chassis:
4×4 MFWD 4WD
Final drives:
inboard planetary
Steering:
power
Brakes:
wet disc
Cab:
Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready
Transmissions:
18-speed full power shift
continuously variable transmission (CVT)
23-speed power shift creeper
Type:
closed center pressure-flow compensating (PFC)
Valves:
4 to 5
Pump flow:
44 gpm 166.5 lpm
75 gpm 283.9 lpm *Optional, MegaFlow rate.
Rear Type:
III/IIIN
IVN/III
Control:
electronic lower-link draft sensing
Rear lift:
12900 lbs 5851 kg *With 4-inch rear axle and 43-inch link arms.
14900 lbs 6758 kg *With 4-inch rear axle and 38-inch link arms.
15900 lbs 7212 kg *With 4.5-inch rear axle and 43-inch link arms.
17900 lbs 8119 kg *With 4.5-inch rear axle and 38-inch link arms.
Drawbar:
Cat. 3
Cat. 4*Optional
Rear PTO:
independent
Rear RPM:
1000
540/1000*Optional
Front PTO:
independent*Optional
Front RPM:
1000 (1.375)
FPT
variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
531 ci 8.7 L
Bore/Stroke:
4.606×5.315 inches 117 x 135 mm
Emissions:
Tier IV
Emission control:
selective catalytic reduction (SCR)
Rated Power (ECE R120):
280 hp 208.8 kW
Maximum Power (ECE R120):
351 hp 261.7 kW
Fuel system:
electronic high-pressure common rail
Cooling system:
viscous fan
Starter:
electric
Starter volts:
12
Transmission:
Ultra-Command
Type:
full power shift
Gears:
18 forward and 4 reverse
Clutch:
electro-hydraulic wet discs
Available as 18-speed or 19-speed with ECO overdrive.
FPS Wheelbase:
136 inches 345 cm
CVT Wheelbase:
138 inches 350 cm
FPS Length:
261 inches 662 cm
CVT Length:
263 inches 668 cm
Height (cab):
132 inches 335 cm
Weight:
22377 lbs 10150 kg
Max weight:
31791 lbs 14420 kg
Front axle:
MFWD
Front axle:
Terraglide
Rear axle:
Bar: 4 by 120 inches 101 by 3048 mm
Rear axle:
Bar: 4.5 by 120 inches 114 by 3048 mm
Front tread:
60 to 88 inches 152 to 223 cm
New Holland T8.350 Tests
OCED Tractor Test 2123A
| OCED Tractor Test 2123A | |
| Diesel Power shift 4WDSeptember 11 – 17, 2015Link: OCED Tractor Test 2123A file | |
| PTO performance | |
| Max power: | 296.56 hp 221.1 kW |
| Fuel use: | 15.1 gal/hour 57.2 l/hour |
| Power at rated engine speed: | 242.08 hp 180.5 kW |
| Fuel use: | 13.0 gal/hour 49.2 l/hour |
| Power at rated PTO speed: | 296.56 hp 221.1 kW |
| Fuel use: | 15.1 gal/hour 57.2 l/hour |
| Drawbar performance | |
| Max power: | 213.10 hp 158.9 kW |
| Fuel use: | 13.0 gal/hour 49.2 l/hour |
| Gear 8 used for power test. | |
| Max pull: | 26131 lbs 11853 kg |
| Gear 4 used for pull test. |
FAQ
Is New Holland T8.350 a good tractor?
The New Holland T8.350 is one of the great tractors in the New Holland stable, and it has earned New Holland a fantastic reputation.
How much oil does a New Holland T8.350 take?
Check out the New Holland T8.350 oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year New Holland made the T8.320
The New Holland T8.350 was an agricultural tractor model made from 2015 –
New Holland T8 Series Tire 4B Tractor Price, Specs, Review, Overview
The New Holland T8 series New Holland T8.320, New Holland T8.350, New Holland T8.380, New Holland T8.410 and New Holland T8.435 tractors are provided with five different power outputs that span rated nominal outputs of 250 to 380hp (Horsepower).
With EPM (Engine Power Management), these figures climb to span 320 to 435hp. But New Holland provides far more than just a choice of output.
There is some little information about the New Holland T8 Series Tire 4B Tractor, but here you can get this tractor related complete information such as that price, specification, Key features and more. Ok so let’s go for that, step by step.
New Holland T8 Series Tire 4B Tractor Official
Here in this YouTube video, you can get the perfect review about the New Holland T8 Series Tire 4B Tractor, so you must watch this video, friends.
Also Read:
- New Holland T8 Series Tractor
- New Holland T9 Series Tractor
- New Holland T5.105 Electro Command Tractor
New Holland T8 Series Tire 4B Tractor Key Features
Engine:
The New Holland T8 Series tractor fitted with High powerful and reliable 8.7 liters FPT Industrial Cursor 9 engines, providing ECOBlue HI-eSCR technology, continue to set the standard for engine performance, dependability and efficiency yet still meet the latest Tier 4B emission regulations.
When it comes to fuel efficiency. With engine power management, the engine delivers excellent power and torque according to the load on the transmission. You can check it’s a complete specification in that below specification table.
Transmission:
The New Holland T8 Tire 4B Tractor designed with the Ultra Command Full Powershift transmission that is really easy to set up and manage with a speed to perfectly match every tool. In short, it’s the most efficient full powershift available today.
Available on the T8.320 and T8.410 tractors, the CommandGrip handle offers fingertip access to automated features, that combine Ground Speed Management,
so you can choose between 18×4, 19×4 (40kph ECO or 50kph) direct-drive and 23×6 with creeper options. Check each single model features in that below specification table.
Hydraulic system:
The New Holland T8 series Tire 4B tractors meet this challenge with a lift capacity to 10,927kg, with the power to lift and lower material quickly and efficiently. To extra boost performance, all tractors come with advanced Headland Turn Sequencing, HTS.
Designed to reduce fatigue and to ensure complex headland turn manoeuvres can be completed quickly and easily. All models can be designed with a fully integrated front linkage with a lift capacity of up to 5810kg.
New Holland T8.350 Engine detail
FPT
variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
531 ci 8.7 L
Bore/Stroke:
4.606×5.315 inches 117 x 135 mm
Emissions:
Tier IV
Emission control:
selective catalytic reduction (SCR)
Rated Power (ECE R120):
280 hp 208.8 kW
Maximum Power (ECE R120):
351 hp 261.7 kW
Fuel system:
electronic high-pressure common rail
Cooling system:
viscous fan
Starter:
electric
Starter volts:
12
Transmission:
Ultra-Command
Type:
full power shift
Gears:
18 forward and 4 reverse
Clutch:
electro-hydraulic wet discs
Available as 18-speed or 19-speed with ECO overdrive.
FPS Wheelbase:
136 inches 345 cm
CVT Wheelbase:
138 inches 350 cm
FPS Length:
261 inches 662 cm
CVT Length:
263 inches 668 cm
Height (cab):
132 inches 335 cm
Weight:
22377 lbs 10150 kg
Max weight:
31791 lbs 14420 kg
Front axle:
MFWD
Front axle:
Terraglide
Rear axle:
Bar: 4 by 120 inches 101 by 3048 mm
Rear axle:
Bar: 4.5 by 120 inches 114 by 3048 mm
Front tread:
60 to 88 inches 152 to 223 cm
New Holland T8.350 Tests
OCED Tractor Test 2123A
| OCED Tractor Test 2123A | |
| Diesel Power shift 4WDSeptember 11 – 17, 2015Link: OCED Tractor Test 2123A file | |
| PTO performance | |
| Max power: | 296.56 hp 221.1 kW |
| Fuel use: | 15.1 gal/hour 57.2 l/hour |
| Power at rated engine speed: | 242.08 hp 180.5 kW |
| Fuel use: | 13.0 gal/hour 49.2 l/hour |
| Power at rated PTO speed: | 296.56 hp 221.1 kW |
| Fuel use: | 15.1 gal/hour 57.2 l/hour |
| Drawbar performance | |
| Max power: | 213.10 hp 158.9 kW |
| Fuel use: | 13.0 gal/hour 49.2 l/hour |
| Gear 8 used for power test. | |
| Max pull: | 26131 lbs 11853 kg |
| Gear 4 used for pull test. |

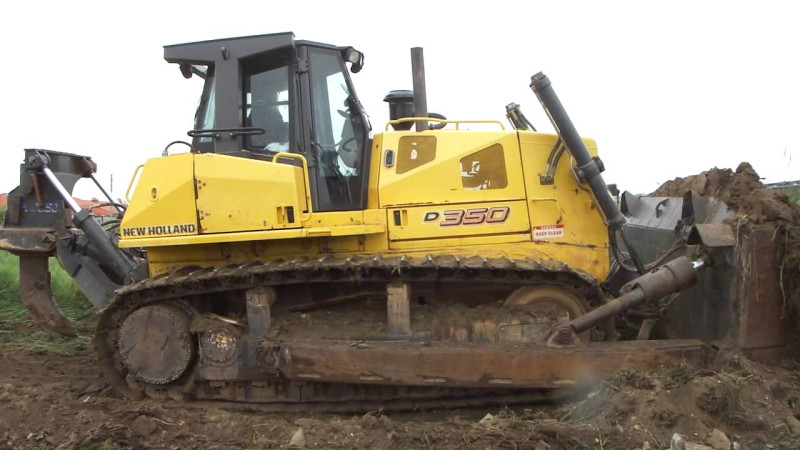

УСТРОЙСТВО New Holland D350
В тракторе New Holland D350 используется прочная конструкция на основе прочной рамы коробчатого сечения. Ходовая часть имеет стандартную конструкцию New Holland. Опорный каток смонтирован в кожухе, который защищает его от повреждений и увеличивает срок службы. Гусеницы регулируются гидравлически с помощью внешней рейки и ведущих колес.
Параметры ходовой части:
- количество опорных катков — 7;
- количество опорных катков — 2;
- количество ботинок — 44;
- стандартный размер обуви – 610 мм;
- Давление на грунт базовой обуви 0,91 кг/кв.см.
New Holland D350 оснащен коробкой передач PowerShift с переключением передач в противоположных направлениях, возможностью выбора скорости под нагрузкой и фиксированным передаточным числом. Коробка передач оснащена одноступенчатым гидротрансформатором и многодисковыми гидромуфтами. Активная тормозная система и автоматическое регулирование скорости облегчают работу оператора. Плавное переключение передач – еще одна особенность коробки передач. Его максимальная скорость вперед составляет 10,6 км/ч, а скорость заднего хода – 12,7 км/ч. Предельное тяговое усилие 577 кН.
Мульчер оснащен гидравлическим ленточным тормозом, который приводится в действие педалью. Оператор может заблокировать коробку передач и затормозить стояночным тормозом (двигатель не запустится).
Гидравлическая система — важнейшая часть бульдозера New Holland D350. Новая конструкция обеспечивает оптимальное распределение мощности. В гидросистеме используется 2-секционный шестеренчатый насос производительностью 346 л/мин в первой секции (навесное оборудование) и 27 л/мин во второй секции (сервоуправление). Отвал бульдозера управляется рычагом.
Бульдозер оборудован стандартной кабиной с очистителем воздуха. Специальный клапан позволяет удалять пыль, попадающую в салон. Система вентиляции регулирует подачу воздуха в кабину. Оператор имеет удобное сиденье с подлокотником и регулировками, снижающими утомляемость во время работы. В качестве опций доступны антивандальная система и кондиционер. Также интегрированы датчики уровня топлива, уровня масла, давления и другие датчики. Современная система диагностики выявляет неисправности, чтобы свести к минимуму время простоя. Все точки обслуживания доступны с уровня земли.
Поскольку производство бульдозера New Holland D350 прекращено, в настоящее время нет новых моделей без пробега. Стоимость используемых моделей 12,1-13,5 млн рублей (2006-2009 гг.).
New Holland T8.380 Price, Specs
New Holland T8.380 Specs
| ENGINE | |
| Type | FPT Cursor 9 |
| No. of cylinders / Aspiration / Valves | 6 / eVGT / 4 |
| Compliant with engine emissions regulations | Tier 4B / Stage 4 |
| ECOBlue SCR HI-eSCR system (Selective Catalytic Reduction) | Standard |
| Fuel system – High-pressure Common Rail | Standard |
| Capacity (cm3 ) | 8700 |
| Bore and Stroke (mm) | 117×135 |
| Approved biodiesel blend** | B7 |
| Max. EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 281 / 381 |
| Max. horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 255 / 347 |
| Rated EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 255 / 347 |
| Rated horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 229 / 311 |
| Rated engine speed (rpm) | 2000 |
| Max. torque – ISO TR14396 @ 1300 – 1400rpm (Nm) | 1708 |
| Torque rise Standard / EPM (%) | 40 / 40 |
| Viscous coupled cooling fan | Standard |
| Earth friendly engine oil filter | Standard |
| Exhaust brake | Optional |
| Diesel capacity Auto Command (Litres) | 609 |
| Diesel capacity Ultra Command (Litres) | 647 |
| Diesel capacity T8 SmartTrax (Litres) | 670 |
| DEF/AdBlue tank capacity (Litres) | 99 |
| Service interval (hours) | 600 |
| Ultra Command Full-Powershift transmission | |
| IntelliShift system | Standard |
| Ground Speed Management system (GSM) | Standard |
| 18 x 4 Ultra Command Full-Powershift (40kph) | Standard |
| Min. speed | 3.34 |
| 19 x 4 Ultra Command Full-Powershift (40kph ECO or 50kph) | Optional |
| Min. speed | 3.34 |
| 23 x 6 Ultra Command Full-Powershift (40kph with Creeper) | Optional |
| Min. speed | 0.97 |
| Auto Command Continuously Variable Transmission | Optional |
| Active StopStart function | Standard |
| Force base propulsion control | Standard |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1400rpm (kph) | 0.03 / 40 |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1725rpm | 0.03 / 50 |
| ELECTRICAL | |
| 12-volt alternator (Amps) | 200 |
| Battery capacity (CCA) | 1900 |
| AXLES | |
| SmartTrax rear tracks | Optional |
| 4WD front axle | Standard |
| Terraglide front axle suspension | Optional |
| Steering angle Standard / Terraglide front axle (°) | 55 / 55 |
| Turning radius with Standard / Terraglide front axle (mm) | 4970 / 4970 |
| Terralock functions | Standard |
| Dynamic front fenders | Optional |
| Bar rear axle | Standard |
| Heavy-duty bar rear axle | NA |
| HYDRAULICS | |
| Closed Centre Load Sensing (CCLS) | Standard |
| Main pump flow Standard / MegaFlow option (Lpm) | 166 / 282 |
| Electronic Draft Control (EDC) | Standard |
| REMOTE VALVES | |
| Type | Electro-hydraulic |
| Max. no. rear valves | 6 |
| Joystick control | Optional |
| LINKAGE | |
| Rear linkage category | III/IIIN |
| Max. lift capacity at ball ends | 9705 kg |
| Front linkage category | II |
| Front linkage lift capacity (610mm in front of ball ends) | 5810kg |
| PTO | |
| Auto Soft Start | Standard |
| Engine speed at: 540 / 1000rpm(rpm) | 1804 |
| Auto PTO management | Standard |
| Front PTO (1000rpm) | Optional |
| BRAKES | |
| Exhaust brake | Optional |
| Electronic park brake | Standard |
| Hydraulic trailer brakes | Optional |
| Pneumatic trailer braking system | Optional |
| CAB | |
| Cab with FOPS – OECD code 10 level 1 | Standard |
| Cab category level – EN 15695 | 2 |
| High visibility RHS window | Standard |
| HID/LED lighting pack | Optional |
| Auto Comfort seat with seat belt | Optional |
| Auto Comfort leather seat with seat belt | Optional |
| Instructors seat with seat belt | Optional |
| Luxury Pack (Leather steering wheel and carpet) | Optional |
| SideWinder II armrest | Standard |
| CommandGrip handle | Standard |
| Electronic adjustment of SideWinder II armrest | Standard |
| Air conditioning | Standard |
| Automatic climate control | Standard |
| Air recirculation filters | Standard |
| MP3 Radio | Optional |
| MP3 Bluetooth Radio (hands free phone calls) | Optional |
| Electronic remotely adjustable mirrors with wide angle lens | Standard |
| Comfort Ride cab suspension | Optional |
| Headland Turn Sequencing (HTS) | Standard |
| Fender mounted external controls | Standard |
| A pillar Performance Monitor with enhanced key pad | Standard |
| IntelliView IV colour monitor with ISO 11783 connector | Standard |
| IntelliSteer guidance ready | Optional |
| PLM Connect Telematics | Optional |
| Optimum cab noise level – 77/311 EEC | 69 |
| Factory fit rotating beacons (1 / 2) | Optional |
| WEIGHTS | |
| Minimum unballasted weights: Std. front axle/including SmartTrax (kg) | 10,840 /16,300 |
| Terraglide suspended front axle / including SmartTrax (kg) | 11,360 /16,500 |
| Max. permissible weight at 50kph*** (Wheeled T8) (kg) | 17,500 |
| Max. permissible weight at 40kph (T8 SmartTrax) (kg) | 20,000 |
ДВИГАТЕЛЬ
New Holland D350 оснащен дизельным двигателем Cummins QSM11 производства CNH Italy. В агрегате используются поршни с головками из кованой стали, способные выдерживать высокие температуры. Гильза цилиндра, имеющая фиксированный центроплан, обеспечивает увеличение ресурса двигателя. Еще одной особенностью двигателя Cummins QSM11 является усовершенствованная система смазки с масляным фильтром Вентури, которая сокращает задержки при запуске и увеличивает расход масла. Интервал замены масла в этом устройстве составляет 700 часов.
Высокая эффективность достигается благодаря турбонаддуву с воздушным охлаждением и непосредственному впрыску топлива. Электронный модуль управления автоматически регулирует расход топлива, поддерживая оптимальные рабочие параметры.
Характеристики агрегата Сummins QSM11:
- рабочий объем – 10,82 л;
- Номинальная мощность — 257 (345) кВт (л.с.);
- частота вращения — 2100 об/мин;
- крутящий момент – 1620 Нм;
- количество цилиндров — 6
- отверстие — 125 мм;
- экологический класс – Евро-3.
New Holland T8.320 Price, Specs
New Holland T8.320 Specs
| ENGINE | |
| Type | FPT Cursor 9 |
| No. of cylinders / Aspiration / Valves | 6 / WT / 4 |
| Compliant with engine emissions regulations | Tier 4B / Stage 4 |
| ECOBlue SCR HI-eSCR system (Selective Catalytic Reduction) | Standard |
| Fuel system – High-pressure Common Rail | Standard |
| Capacity (cm3 ) | 8700 |
| Bore and Stroke (mm) | 117×135 |
| Approved biodiesel blend** | B7 |
| Max. EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 235 / 320 |
| Max. horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 209 / 284 |
| Rated EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 210 / 286 |
| Rated horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 184 / 250 |
| Rated engine speed (rpm) | 2000 |
| Max. torque – ISO TR14396 @ 1300 – 1400rpm (Nm) | 1407 |
| Torque rise Standard / EPM (%) | 40 / 40 |
| Viscous coupled cooling fan | Standard |
| Earth friendly engine oil filter | Standard |
| Exhaust brake | Optional |
| Diesel capacity Auto Command (Litres) | 609 |
| Diesel capacity Ultra Command (Litres) | 647 |
| Diesel capacity T8 SmartTrax (Litres) | NA |
| DEF/AdBlue tank capacity (Litres) | 99 |
| Service interval (hours) | 600 |
| Ultra Command Full-Powershift transmission | |
| IntelliShift system | Standard |
| Ground Speed Management system (GSM) | Standard |
| 18 x 4 Ultra Command Full-Powershift (40kph) | Standard |
| Min. speed | 3.35 |
| 19 x 4 Ultra Command Full-Powershift (40kph ECO or 50kph) | Optional |
| Min. speed | 3.35 |
| 23 x 6 Ultra Command Full-Powershift (40kph with Creeper) | Optional |
| Min. speed | 0.98 |
| Auto Command Continuously Variable Transmission | Optional |
| Active StopStart function | Standard |
| Force base propulsion control | Standard |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1400rpm (kph) | 0.03 / 40 |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1725rpm | 0.03 / 50 |
| ELECTRICAL | |
| 12-volt alternator (Amps) | 200 |
| Battery capacity (CCA) | 1900 |
| AXLES | |
| SmartTrax rear tracks | NA |
| 4WD front axle | Standard |
| Terraglide front axle suspension | Optional |
| Steering angle Standard / Terraglide front axle (°) | 55 / 55 |
| Turning radius with Standard / Terraglide front axle (mm) | 4970 / 4970 |
| Terralock functions | Standard |
| Dynamic front fenders | Optional |
| Bar rear axle | Standard |
| Heavy-duty bar rear axle | NA |
| HYDRAULICS | |
| Closed Centre Load Sensing (CCLS) | Standard |
| Main pump flow Standard / MegaFlow option (Lpm) | 166 / 282 |
| Electronic Draft Control (EDC) | Standard |
| REMOTE VALVES | |
| Type | Electro-hydraulic |
| Max. no. rear valves | 6 |
| Joystick control | Optional |
| LINKAGE | |
| Rear linkage category | III/IIIN |
| Max. lift capacity at ball ends | 8843 kg |
| Front linkage category | II |
| Front linkage lift capacity (610mm in front of ball ends) | 5810kg |
| PTO | |
| Auto Soft Start | Standard |
| Engine speed at: 540 / 1000rpm(rpm) | 1804 |
| Auto PTO management | Standard |
| Front PTO (1000rpm) | Optional |
| BRAKES | |
| Exhaust brake | Optional |
| Electronic park brake | Standard |
| Hydraulic trailer brakes | Optional |
| Pneumatic trailer braking system | Optional |
| CAB | |
| Cab with FOPS – OECD code 10 level 1 | Standard |
| Cab category level – EN 15695 | 2 |
| High visibility RHS window | Standard |
| HID/LED lighting pack | Optional |
| Auto Comfort seat with seat belt | Optional |
| Auto Comfort leather seat with seat belt | Optional |
| Instructors seat with seat belt | Optional |
| Luxury Pack (Leather steering wheel and carpet) | Optional |
| SideWinder II armrest | Standard |
| CommandGrip handle | Standard |
| Electronic adjustment of SideWinder II armrest | Standard |
| Air conditioning | Standard |
| Automatic climate control | Standard |
| Air recirculation filters | Standard |
| MP3 Radio | Optional |
| MP3 Bluetooth Radio (hands free phone calls) | Optional |
| Electronic remotely adjustable mirrors with wide angle lens | Standard |
| Comfort Ride cab suspension | Optional |
| Headland Turn Sequencing (HTS) | Standard |
| Fender mounted external controls | Standard |
| A pillar Performance Monitor with enhanced key pad | Standard |
| IntelliView IV colour monitor with ISO 11783 connector | Standard |
| IntelliSteer guidance ready | Optional |
| PLM Connect Telematics | Optional |
| Optimum cab noise level – 77/311 EEC | 68 |
| Factory fit rotating beacons (1 / 2) | Optional |
| WEIGHTS | |
| Minimum unballasted weights: Std. front axle/including SmartTrax (kg) | 10,715 |
| Terraglide suspended front axle / including SmartTrax (kg) | 11,235 |
| Max. permissible weight at 50kph*** (Wheeled T8) (kg) | 17,500 |
| Max. permissible weight at 40kph (T8 SmartTrax) (kg) | NA |
| Track width (min. / max.) | 1727 / 2235 mm |
| Ground clearance (depends on hitch or tow hook) | 378 mm |
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ New Holland D350
Габаритные размеры:
- Длина без аксессуаров: 5285 мм;
- Ширина с ботинками 610 мм — 2744 мм;
- Ширина с ботинками 711 мм — 2845 мм;
- Высота по выхлопной трубе – 3375 мм;
- Длина гусеницы – 3243 мм.
Ассортимент навесного оборудования для трактора New Holland D350 включает:
- бульдозерный полусферический отвал (ГСУ);
- полусферический бульдозерный отвал (HSU Desert);
- Сферический отвал (СУ);
- Вращающееся лезвие (HA).
Характеристики отвалов (HSU/HSU Desert/SU/HA):
- Ширина – 3975/3975/4295/4620 мм;
- высота – 1700/1820/1660/1145 мм;
- предельный наклон – 900/900/975/470 мм;
- угол наклона – 13/13/13/10 градусов;
- высота над землей — 1220/1220/1220/1140 мм
- Глубина копания – 600/600/600/658 мм;
- вместимость — 9,1/12,5/11,4/4,5 куб.м;
- длина бульдозера с отвалом — 6326/6326/6626/6062 мм;
- длина бульдозера с отвалом и рыхлителем – 8234/8234/8534/7970 мм;
- эксплуатационная масса – 35900/36000/36180/34360 кг;
- Эксплуатационная масса с бульдозером и рыхлителем – 39100/39200/39380/37560 кг.
Ассортимент тыловых орудий представлен параллелограммными культиваторами со следующими параметрами:
- количество зубьев — 3/1;
- ширина румпеля — 2400/-;
- глубина рыхления — 750/1195 мм;
- высота подъема — 1020/1750 мм.
New Holland T8.410 Price Specs
New Holland T8.410 Specs
| ENGINE | |
| Type | FPT Cursor 9 |
| No. of cylinders / Aspiration / Valves | 6 / eVGT / 4 |
| Compliant with engine emissions regulations | Tier 4B / Stage 4 |
| ECOBlue SCR HI-eSCR system (Selective Catalytic Reduction) | Standard |
| Fuel system – High-pressure Common Rail | Standard |
| Capacity (cm3 ) | 8700 |
| Bore and Stroke (mm) | 117×135 |
| Approved biodiesel blend** | B7 |
| Max. EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 301 / 409 |
| Max. horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 275 / 374 |
| Rated EPM horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 276 / 375 |
| Rated horsepower – ISO TR14396 – ECE R120 [kW / hp(CV)] | 250 / 340 |
| Rated engine speed (rpm) | 2000 |
| Max. torque – ISO TR14396 @ 1300 – 1400rpm (Nm) | 1800 |
| Torque rise Standard / EPM (%) | 40 / 37 |
| Viscous coupled cooling fan | Standard |
| Earth friendly engine oil filter | Standard |
| Exhaust brake | Optional |
| Diesel capacity Auto Command (Litres) | 609 |
| Diesel capacity Ultra Command (Litres) | 647 |
| Diesel capacity T8 SmartTrax (Litres) | 670 |
| DEF/AdBlue tank capacity (Litres) | 99 |
| Service interval (hours) | 600 |
| Ultra Command Full-Powershift transmission | |
| IntelliShift system | Standard |
| Ground Speed Management system (GSM) | Standard |
| 18 x 4 Ultra Command Full-Powershift (40kph) | Standard |
| Min. speed | 3.34 |
| 19 x 4 Ultra Command Full-Powershift (40kph ECO or 50kph) | Optional |
| Min. speed | 3.34 |
| 23 x 6 Ultra Command Full-Powershift (40kph with Creeper) | Optional |
| Min. speed | 0.97 |
| Auto Command Continuously Variable Transmission | Optional |
| Active StopStart function | Standard |
| Force base propulsion control | Standard |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1400rpm (kph) | 0.03 / 40 |
| Auto Command Continuously Variable Transmission (50kph) | Optional |
| Min. speed / Max. speed @ 1725rpm | 0.03 / 50 |
| ELECTRICAL | |
| 12-volt alternator (Amps) | 200 |
| Battery capacity (CCA) | 1900 |
| AXLES | |
| SmartTrax rear tracks | Optional |
| 4WD front axle | Standard |
| Terraglide front axle suspension | Optional |
| Steering angle Standard / Terraglide front axle (°) | 55 / 55 |
| Turning radius with Standard / Terraglide front axle (mm) | 4970 / 4970 |
| Terralock functions | Standard |
| Dynamic front fenders | Optional |
| Bar rear axle | Standard |
| Heavy-duty bar rear axle | Optional |
| HYDRAULICS | |
| Closed Centre Load Sensing (CCLS) | Standard |
| Main pump flow Standard / MegaFlow option (Lpm) | 166 / 282 |
| Electronic Draft Control (EDC) | Standard |
| REMOTE VALVES | |
| Type | Electro-hydraulic |
| Max. no. rear valves | 6 |
| Joystick control | Optional |
| LINKAGE | |
| Rear linkage category | IVN / III |
| Max. lift capacity at ball ends | 10927 |
| Front linkage category | II |
| Front linkage lift capacity (610mm in front of ball ends) | 5810kg |
| PTO | |
| Auto Soft Start | Standard |
| Engine speed at: 540 / 1000rpm(rpm) | 1804 |
| Auto PTO management | Standard |
| Front PTO (1000rpm) | Optional |
| BRAKES | |
| Exhaust brake | Optional |
| Electronic park brake | Standard |
| Hydraulic trailer brakes | Optional |
| Pneumatic trailer braking system | Optional |
| CAB | |
| Cab with FOPS – OECD code 10 level 1 | Standard |
| Cab category level – EN 15695 | 2 |
| High visibility RHS window | Standard |
| HID/LED lighting pack | Optional |
| Auto Comfort seat with seat belt | Optional |
| Auto Comfort leather seat with seat belt | Optional |
| Instructors seat with seat belt | Optional |
| Luxury Pack (Leather steering wheel and carpet) | Optional |
| SideWinder II armrest | Standard |
| CommandGrip handle | Standard |
| Electronic adjustment of SideWinder II armrest | Standard |
| Air conditioning | Standard |
| Automatic climate control | Standard |
| Air recirculation filters | Standard |
| MP3 Radio | Optional |
| MP3 Bluetooth Radio (hands free phone calls) | Optional |
| Electronic remotely adjustable mirrors with wide angle lens | Standard |
| Comfort Ride cab suspension | Optional |
| Headland Turn Sequencing (HTS) | Standard |
| Fender mounted external controls | Standard |
| A pillar Performance Monitor with enhanced key pad | Standard |
| IntelliView IV colour monitor with ISO 11783 connector | Standard |
| IntelliSteer guidance ready | Optional |
| PLM Connect Telematics | Optional |
| Optimum cab noise level – 77/311 EEC | 69 |
| Factory fit rotating beacons (1 / 2) | Optional |
| WEIGHTS | |
| Minimum unballasted weights: Std. front axle/including SmartTrax (kg) | 10,915 /16,300 |
| Terraglide suspended front axle / including SmartTrax (kg) | 11,440 /16,500 |
| Max. permissible weight at 50kph*** (Wheeled T8) (kg) | 18,000 |
| Max. permissible weight at 40kph (T8 SmartTrax) (kg) | 20,000 |
FAQ
Is New Holland T8.350 a good tractor?
The New Holland T8.350 is one of the great tractors in the New Holland stable, and it has earned New Holland a fantastic reputation.
How much oil does a New Holland T8.350 take?
Check out the New Holland T8.350 oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year New Holland made the T8.320
The New Holland T8.350 was an agricultural tractor model made from 2015 –
