New Holland T6070 Elite Engine detail
FPT NEF
turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
410.6 ci 6.7 L
Bore/Stroke:
4.094×5.197 inches 104 x 132 mm
Emissions:
Tier 3
Rated Power (ECE R120):
140 hp 104.4 kW
Maximum Power (ECE R120):
150 hp 111.9 kW
Fuel system:
high pressure common rail (HPCR)
Rated RPM:
2200
Starter:
electric
Starter volts:
12
Oil capacity:
16 qts 15.1 L
Transmission:
AutoShift
Type:
partial power shift
Gears:
16 forward and reverse
Clutch:
hydraulic wet disc
Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.
Wheelbase:
104.4 inches 265 cm
95.3 inches 242 cm (Terraglide axle)
99.2 inches 251 cm (SuperSteer axle)
Length:
178.4 inches 453 cm
Width:
75.3 inches 191 cm
Height:
109.1 inches 277 cm
Shiping weight:
11,836 lbs 5368 kg
Operating weight:
12,180 lbs 5524 kg
Ground clearance:
18.8 inches 47 cm
New Holland T6070 Elite Tests
OCED Tractor Test 2486
| OCED Tractor Test 2486 | |
| Diesel Autoshift 4WDJanuary 2008 – May 2008, Link: OCED Tractor Test 2486 file | |
| PTO performance | |
| Max power: | 140.3 hp 104.6 kW |
| Fuel use: | 8.1 gal/hour 30.7 l/hour |
| Power at rated engine speed: | 127.1 hp 94.8 kW |
| Fuel use: | 7.7 gal/hour 29.1 l/hour |
| Power at rated PTO speed: | 134.6 hp 100.4 kW |
| Fuel use: | 8.0 gal/hour 30.3 l/hour |
| Drawbar performance | |
| Max power: | 107.4 hp 80.1 kW |
| Fuel use: | 7.8 gal/hour 29.5 l/hour |
| Gear 8L used for power test. | |
| Max pull: | 11,870 lbs 5384 kg |
| Gear 1L used for pull test. |
| OCED Tractor Test 2472 | ||
| OCED Tractor Test 2472 | |
| Diesel Range Command 4WDSeptember 2008 – January 2009, Link: OCED Tractor Test 2472 file | |
| PTO performance | |
| Max power: | 137.5 hp 102.5 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Power at rated engine speed: | 121.5 hp 90.6 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Power at rated PTO speed: | 125.4 hp 93.5 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Drawbar performance | |
| Max power: | 99.9 hp 74.5 kW |
| Fuel use: | 7.5 gal/hour 28.4 l/hour |
| Gear 3M used for power test. | |
| Max pull: | 12,915 lbs 5858 kg |
| Gear 1L used for pull test. |
Преимущества и недостатки тракторов Нью Холланд
Весь модельный ряд New Holland изготавливается с использованием высокотехнологического оборудования, и имеет целый ряд достоинств:
- Качество. Комплектующие выполнены из прочных материалов, это увеличивает срок службы машины без дополнительного ремонта;
- Устойчивость. Вся линейка тракторов имеет в основании удлиненную раму. Она позволяет технике двигаться плавно по неровному покрытию, и быть устойчивой к опрокидыванию;
- Тяговые характеристики. Независимо от класса, Нью Холланд имеет хорошие тяговые показатели, по сравнению с аналогами;
- Экологичность. Работа узлов и механизмов оказывает минимальное вредное воздействие на окружающую среду. Силовые установки техники соответствуют международным стандартам;
- Экономичность. Двигатели, устанавливаемые на трактора New Holland, отличаются низким расходом топлива;
- Стабильная работа. Машины успешно работают в любых климатических условиях;
- Комфорт. Модели имеют комфортабельные кабины, установленные на амортизаторы. Рычаги управления расположены в непосредственной близости к креслу оператора.
Технические данные трактора New Holland T6010/T6020/T6030/T6040/T6050/T6060/T6070/T6080/T6090 :
| Модель | New Holland T6010 | New Holland T6020 | New Holland T6030 | New Holland T6040 | New Holland T6050 | New Holland T6060 | New Holland T6070 | New Holland T6080 | New Holland T6090 |
| Годы производства | — | — | — | — | — | — | — | — | — |
| Модель / тип двигателя | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF |
| Количество цилиндров / турбонаддув | 4TI | 4TI | 6TI | 4TI | 6TI | 4TI | 6TI | 6TI | 6TI |
| Объем двигателя (см3) | 4485 | 4485 | 6728 | 4485 | 6728 | 4485 | 6728 | 6728 | 6728 |
| Размер поршня / ход (мм) | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 |
| Максимальная мощность двигателя (л.с.) / об / мин | 101/2200 | 112/2200 | 117/2200 | 122(141)/2200 | 125(159)/2200 | 132(141)/2200 | 141(169)/2200 | 155(167)/2200 | 165(190)/2200 |
| Крутящий момент (Нм) / об / мин | 400/1400 | 455/1400 | 516/1400 | 563/1400 | 593/1400 | 594/1400 | 613/1400 | 690/1400 | 710/1400 |
| Количество передач (перед + зад) | 24+24/16+16 | 24+24/16+16 | 24+24/16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 18+6 | 18+6 |
| Количество синхронизированных передач (перед + зад) | — | — | — | 16+16 | 16+16 | 16+16 | 16+16 | 18+6 | 18+6 |
| Скорость-Shift | — | — | — | 4 | 4 | 4 | 4 | — | — |
| Тип реверса | hydr | hydr | hydr | hydr | hydr | hydr | hydr | hydr | hydr |
| Скорость движения (км / ч) | 40 (48) | 40 (48) | 40 (48) | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 | 2,2-38 | 2,2-38 |
| Максимальная скорость движения (км / ч) | — | — | — | 40 (48) | 40 (48) | 40 (48) | 40 (48) | 40 (51) | 40 (51) |
| Производительность гидравлического насоса (л / мин) | 113 | 113 | 113 | 113 | 113 | 113 | 113 | 113 | 113 |
| 3-точечное управление сцепкой | ehr | ehr | ehr | ehr | ehr | ehr | ehr | ehr | ehr |
| Максимальная нагрузка на трехточечную навеску (кг) | 7864 | 7864 | 7864 | 7864 | 7864 | 7864 | 7864 | 8257 | 8257 |
| Скорость ВОМ (об / мин) | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Тип дискового тормоза (сухой / мокрый) | — | — | — | — | — | — | — | — | — |
| Тип управления тормозной системой | — | — | — | — | — | — | — | — | — |
| Радиус поворота 2WD (м) | — | — | — | — | — | — | — | — | — |
| Радиус поворота 4WD (м) | — | — | — | — | — | — | — | — | — |
| Переднее колесо 2WD | — | — | — | — | — | — | — | — | — |
| Переднее колесо 4WD | 13.6R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 16.9R28 | 16.9R28 |
| Заднее колесо 2WD | — | — | — | — | — | — | — | — | — |
| Заднее колесо 4WD | 16.9R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 |
| Общий вес 2WD (кг) | — | — | — | — | — | — | — | — | — |
| Общий вес 4WD (кг) | 5060 (SS 5340) | 5230 (SS 5610) | 5330 (SS 5610) | 5250 (SS 5430) | 5330 (SS 5610) | 5250 (SS 5430) | 5330 (SS 5610) | 6300 (6600) | 6300 (6600) |
| Общая высота с кабиной (см) | 280 (290) | 284 (294) | 284 (294) | 292 | 298 | 292 | 298 | 305 | 305 |
| Общая длина (см) | 429 | 429 | 453 | 429 | 453 | 429 | 453 | 482 | 482 |
| Общая ширина (см) | 241 (SS 252) | 241 (SS 252) | 265 (SS 276) | 241 (SS 252) | 265 (SS 276) | 241 (SS 252) | 265 (SS 276) | 273 (SS 288) | 273 (SS 288) |
| Емкость топливного бака (л) | 176 (SS 152) | 176 (SS 152) | 250 (SS 230) | 176 (SS 152) | 250 (SS 230) | 176 (SS 152) | 250 (SS 230) | 300 | 300 |
| Уровень шума в салоне (дБ) | 70 | 70 | 73 | 71 | 72 | 71 | 72 | 72 | 72 |
Также проверьте спецификации :
- New Holland T4.55/T4.65/T4.75/T4.85/T4.95/T4.105/T4.115
- New Holland T4020/T4030/T4040/T4050
- New Holland T5.75/T5.85/T5.95/T5.105/T5.115/T5.100/T5.110/T5.120
- New Holland T5030/T5040/T5050/T5060/T5070
- New Holland T6.120/T6.140/T6.150/T6.160
- New Holland T6.125/T6.145/T6.155/T6.165/T6.175/T6.180
New Holland — американский производитель сельскохозяйственной техники, такой как сельскохозяйственные тракторы, зерноуборочные комбайны и телескопические погрузчики. Компания была основана в 1895 году в Пенсильвании. Сегодня сельскохозяйственное оборудование New Holland производится на 18 заводах по всему миру. В настоящее время New Holland принадлежит компании CNH.
#New Holland T6010 технічна характеристика #New Holland T6010 cпецификация #New Holland T6010 характеристики #New Holland T6010 мнения #New Holland T6020 технічна характеристика #New Holland T6020 cпецификация #New Holland T6020 характеристики #New Holland T6020 мнения #New Holland T6030 технічна характеристика #New Holland T6030 cпецификация #New Holland T6030 характеристики #New Holland T6030 мнения #New Holland T6040 технічна характеристика #New Holland T6040 cпецификация #New Holland T6040 характеристики #New Holland T6040 мнения #New Holland T6050 технічна характеристика #New Holland T6050 cпецификация #New Holland T6050 характеристики #New Holland T6050 мнения #New Holland T6060 технічна характеристика #New Holland T6060 cпецификация #New Holland T6060 характеристики #New Holland T6060 мнения #New Holland T6070 технічна характеристика #New Holland T6070 cпецификация #New Holland T6070 характеристики #New Holland T6070 мнения #New Holland T6080 технічна характеристика #New Holland T6080 cпецификация #New Holland T6080 характеристики #New Holland T6080 мнения #New Holland T6090 технічна характеристика #New Holland T6090 cпецификация #New Holland T6090 характеристики #New Holland T6090 мнения

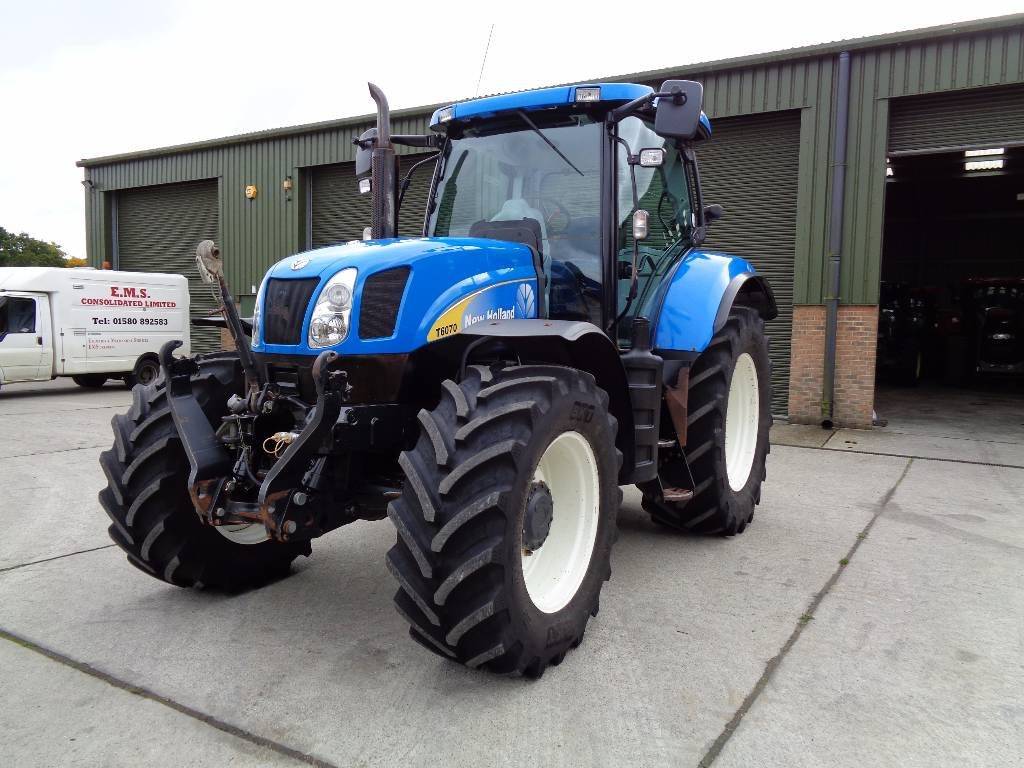

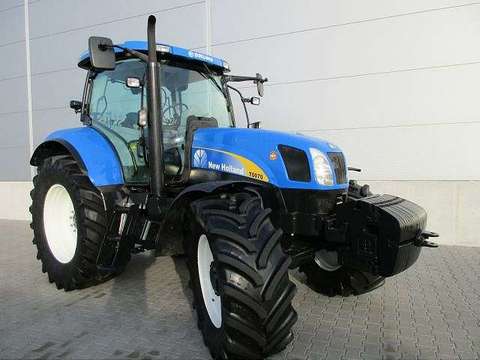

New Holland T6070 Elite Production
Manufacturer:
New Holland
Type:
Row-Crop tractor
Factory:
Basildon, England
During official testing, the T6070 Elite was unable to lift the advertised 12,185 pounds on the three-point hitch to maximum height. Actual lift at maximum height was 11,355 pounds.
Engine:
Engine (gross):
140 hp 104.4 kW
Engine (max):
150 hp 111.9 kW
PTO (claimed):
120 hp 89.5 kW
Drawbar (tested):
107.4 hp 80.1 kW
PTO (tested):
140.3 hp 104.6 kW
Ground:
negative
Charging system:
alternator
Charging amps:
120
Charging volts:
12
Battery CCA:
1300
Battery volts:
12
Chassis:
4×4 MFWD 4WD
Steering:
hydrostatic power
Brakes:
hydraulic wet disc
Cab:
Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.
Transmissions:
16-speed partial power shift
18-speed
Fuel:
79.3 gal 300.2 L
Hydraulic system:
18.5 gal 70.0 L
Type:
closed center load sensing
Capacity:
18.5 gal 70.0 L
Valves:
2 to 4
Pump flow:
26.5 gpm 100.3 lpm
Total flow:
43.6 gpm 165.0 lpm
Steering flow:
17.1 gpm 64.7 lpm
Rear Type:
2/3N
Control:
electronic lower-link draft control
Rear lift:
12,185 lbs 5527 kg
Rear PTO:
independent
Rear RPM:
540/1000 (1.375)
FPT NEF
turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
410.6 ci 6.7 L
Bore/Stroke:
4.094×5.197 inches 104 x 132 mm
Emissions:
Tier 3
Rated Power (ECE R120):
140 hp 104.4 kW
Maximum Power (ECE R120):
150 hp 111.9 kW
Fuel system:
high pressure common rail (HPCR)
Rated RPM:
2200
Starter:
electric
Starter volts:
12
Oil capacity:
16 qts 15.1 L
Transmission:
AutoShift
Type:
partial power shift
Gears:
16 forward and reverse
Clutch:
hydraulic wet disc
Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.
Wheelbase:
104.4 inches 265 cm
95.3 inches 242 cm (Terraglide axle)
99.2 inches 251 cm (SuperSteer axle)
Length:
178.4 inches 453 cm
Width:
75.3 inches 191 cm
Height:
109.1 inches 277 cm
Shiping weight:
11,836 lbs 5368 kg
Operating weight:
12,180 lbs 5524 kg
Ground clearance:
18.8 inches 47 cm
New Holland T6070 Elite Tests
OCED Tractor Test 2486
| OCED Tractor Test 2486 | |
| Diesel Autoshift 4WDJanuary 2008 – May 2008, Link: OCED Tractor Test 2486 file | |
| PTO performance | |
| Max power: | 140.3 hp 104.6 kW |
| Fuel use: | 8.1 gal/hour 30.7 l/hour |
| Power at rated engine speed: | 127.1 hp 94.8 kW |
| Fuel use: | 7.7 gal/hour 29.1 l/hour |
| Power at rated PTO speed: | 134.6 hp 100.4 kW |
| Fuel use: | 8.0 gal/hour 30.3 l/hour |
| Drawbar performance | |
| Max power: | 107.4 hp 80.1 kW |
| Fuel use: | 7.8 gal/hour 29.5 l/hour |
| Gear 8L used for power test. | |
| Max pull: | 11,870 lbs 5384 kg |
| Gear 1L used for pull test. |
| OCED Tractor Test 2472 | ||
| OCED Tractor Test 2472 | |
| Diesel Range Command 4WDSeptember 2008 – January 2009, Link: OCED Tractor Test 2472 file | |
| PTO performance | |
| Max power: | 137.5 hp 102.5 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Power at rated engine speed: | 121.5 hp 90.6 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Power at rated PTO speed: | 125.4 hp 93.5 kW |
| Fuel use: | 7.6 gal/hour 28.8 l/hour |
| Drawbar performance | |
| Max power: | 99.9 hp 74.5 kW |
| Fuel use: | 7.5 gal/hour 28.4 l/hour |
| Gear 3M used for power test. | |
| Max pull: | 12,915 lbs 5858 kg |
| Gear 1L used for pull test. |
FAQ
Is New Holland T6070 Elite a good tractor?
The New Holland T6070 Elite is one of the great tractors in the New Holland stable, and it has earned New Holland a fantastic reputation.
How much oil does a New Holland T6070 Elite take?
Check out the New Holland T6070 Elite oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year New Holland made the T6060 Elite
The New Holland T6070 Elite was an agricultural tractor model made from 2007 – 2012
