Трактор Т-800
Российская машина-гигант, создавалась конструкторами для проведения вскрышных работ при разработке скальных, тяжелых, мерзлых пород (при добыче сырья открытым методом) в тех местах, где оказались бессильны буровзрывные работы.
Вес и габаритные параметры Т-800:
- – высота – 4, 8 м;
- – ширина – 4, 2 м, с навесным оборудованием – 6 м;
- – длина – с навесными механизмами – 12 м, без них – 7, 95 м;
- – колея – 2,88 м;
- – масса трактора – 76, 5 т, вес в снаряженном состоянии (с рыхлителем и бульдозерным отвалом) – 106 т.
Особые технические характеристики машины:
- производительный шестицилиндровый двигатель – мощностью в 820 л.с., с системой подогрева основных рабочих узлов, жидкостным охлаждением, что позволяло работать трактору в условиях очень высоких/низких t;
- коробка передач со способностью обеспечивать 2 задние и 4 передние передачи;
- кабина с жестким каркасом безопасности, с защитным ограждением.
Challenger MT775E Mechanical
Chassis:
crawler
Steering:
electro-hydraulic differential
Brakes:
hydraulic wet disc
Cab:
Cab standard.
Transmission:
16-speed full power shift
Pressure:
2900 psi 200.0 bar
Valves:
4 to 6
Pump flow:
58.1 gpm 219.9 lpm
85 gpm 321.7 lpm (optional)
SCV flow:
26.4 gpm 99.9 lpm
36 gpm 136.3 lpm (optional)
Rear Type:
IVN/III
Rear lift:
16000 lbs 7257 kg
Drawbar:
Cat. 4 standard
Cat. 3 optional
Rear PTO:
independent
Rear RPM:
1000 (1.75)
AGCO POWER
turbocharged diesel
7-cylinder 28-valve
liquid-cooled
Displacement:
598 ci 9.8 L
Bore/Stroke:
4.370×5.709 inches 111 x 145 mm
Emissions:
Tier IV
Emission control:
selective catalytic reduction (SCR)
Power (gross):
400 hp 298.3 kW
Maximum Power:
431 hp 321.4 kW
Rated RPM:
2100
Torque:
1417 lb-ft 1921.5 Nm
Torque RPM:
1500
Starter volts:
12
Transmission:
Caterpillar
Type:
full power shift
Gears:
16 forward and 4 reverse
Clutch:
hydraulic wet disc
Challenger MT775E Dimensions
Gauge:
72 to 88 inches182 to 223 cm
Gauge:
80 to 120 inches203 to 304 cm (optional)
Gauge:
120 to 160 inches304 to 406 cm (optional)
| Challenger MT775E Weight | |
| Shipping: | 30131 lbs 13667 kg |
| Max capacity: | 39000 lbs 17690 kg |
| Max Drawbar: | 10000 lbs 4536 kg (Cat 3) |
| 12000 lbs 5443 kg (Cat 4) |
Challenger MT775E Tests
OCED Tractor Test 2089
| OCED Tractor Test 2089 | |
| Diesel 16-speed crawlerMay 22 – June 9, 2014Link: OCED Tractor Test 2089 file | |
| PTO performance | |
| Max power: | 374.43 hp 279.2 kW |
| Fuel use: | 20.2 gal/hour 76.5 l/hour |
| Power at rated engine speed: | 334.69 hp 249.6 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Power at rated PTO speed: | 363.92 hp 271.4 kW |
| Fuel use: | 21.3 gal/hour 80.6 l/hour |
| Drawbar performance | |
| Max power: | 297.83 hp 222.1 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Gear 8 used for power test. | |
| Max pull: | 31204 lbs 14154 kg |
| Gear 4 used for pull test. |
FAQ
Is Challenger MT775E a good tractor?
The Challenger MT775E is one of the great tractors in the Challenger (a part of AGCO) stable, and it has earned Challenger (a part of AGCO) a fantastic reputation.
How much oil does a Challenger MT775E take?
Check out the Challenger MT775E oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year Challenger (a part of AGCO) made the MT765E
The Challenger MT775E was an agricultural tractor model made from 2014 – 2017
FAQ
Is Challenger MT775E a good tractor?
The Challenger MT775E is one of the great tractors in the Challenger (a part of AGCO) stable, and it has earned Challenger (a part of AGCO) a fantastic reputation.
How much oil does a Challenger MT775E take?
Check out the Challenger MT775E oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year Challenger (a part of AGCO) made the MT765E
The Challenger MT775E was an agricultural tractor model made from 2014 – 2017

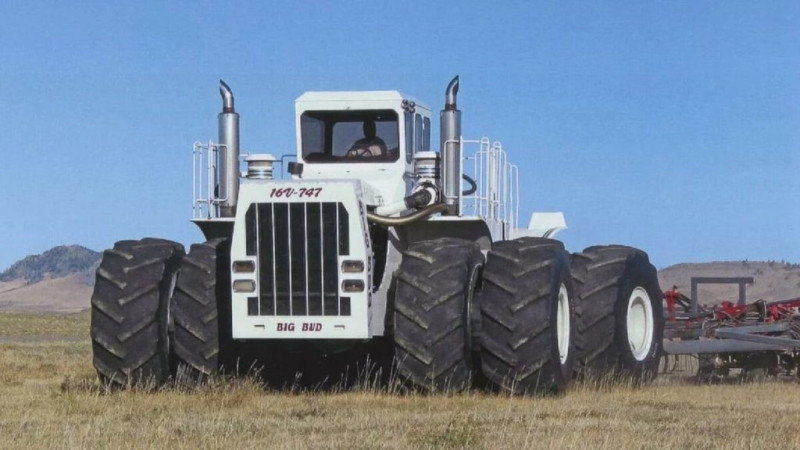

Big Bud 747
В публикации использованы изображения из открытых источников
Американский сверхтяжелый, колесный трактор сельскохозяйственного назначения, создавался в 1977 г. для фермеров Калифорнии, занимающихся посадкой хлопковых полей.
Трактор способен выполнить очень большой объем работ по:
– протаскиванию широченного плуга (30 м.), с целью глубокого запахивания (глубина захвата 3 м.) грунтов любого качества. Его дневная производительность – вспашка 400 га. земли;
– волочению 25-метрового культиватора (вес 80 т.) для рыхления почвы со скоростью – 0,4 га./за 1 минуту.
Впечатляющие возможности Big Bud объясняются его особым функционалом:
- мощнейшим 16-цилиндровым, дизельным двигателем в 900 л.с;
- 6-ступенчатой коробкой передач;
- широким шасси с осями повышенного трения и 8 сдвоенными колесами, со специально изготовленными шинами 2,4 метра.
Размерные параметры, вес машины:
- – высота – 4,3 м;
- – ширина – 6,3 м;
- – длина – 8,69 м;
- – масса в полном снаряжении – 49,9 тонн.
Challenger MT775E Engine detail
AGCO POWER
turbocharged diesel
7-cylinder 28-valve
liquid-cooled
Displacement:
598 ci 9.8 L
Bore/Stroke:
4.370×5.709 inches 111 x 145 mm
Emissions:
Tier IV
Emission control:
selective catalytic reduction (SCR)
Power (gross):
400 hp 298.3 kW
Maximum Power:
431 hp 321.4 kW
Rated RPM:
2100
Torque:
1417 lb-ft 1921.5 Nm
Torque RPM:
1500
Starter volts:
12
Transmission:
Caterpillar
Type:
full power shift
Gears:
16 forward and 4 reverse
Clutch:
hydraulic wet disc
Challenger MT775E Dimensions
Gauge:
72 to 88 inches182 to 223 cm
Gauge:
80 to 120 inches203 to 304 cm (optional)
Gauge:
120 to 160 inches304 to 406 cm (optional)
| Challenger MT775E Weight | |
| Shipping: | 30131 lbs 13667 kg |
| Max capacity: | 39000 lbs 17690 kg |
| Max Drawbar: | 10000 lbs 4536 kg (Cat 3) |
| 12000 lbs 5443 kg (Cat 4) |
Challenger MT775E Tests
OCED Tractor Test 2089
| OCED Tractor Test 2089 | |
| Diesel 16-speed crawlerMay 22 – June 9, 2014Link: OCED Tractor Test 2089 file | |
| PTO performance | |
| Max power: | 374.43 hp 279.2 kW |
| Fuel use: | 20.2 gal/hour 76.5 l/hour |
| Power at rated engine speed: | 334.69 hp 249.6 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Power at rated PTO speed: | 363.92 hp 271.4 kW |
| Fuel use: | 21.3 gal/hour 80.6 l/hour |
| Drawbar performance | |
| Max power: | 297.83 hp 222.1 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Gear 8 used for power test. | |
| Max pull: | 31204 lbs 14154 kg |
| Gear 4 used for pull test. |
Challenger MT775E Production
Manufacturer:
Challenger (a part of AGCO)
Type:
Agricultural Crawler tractor
Factory:
Jackson, Minnesota, USA
Engine:
Engine (gross):
400 hp 298.3 kW
Drawbar (tested):
297.83 hp 222.1 kW
PTO (tested):
374.43 hp 279.2 kW
Ground:
negative
Charging system:
alternator
Charging amps:
300 (2x 150amp)
Batteries:
2
Battery volts:
12
Chassis:
crawler
Steering:
electro-hydraulic differential
Brakes:
hydraulic wet disc
Cab:
Cab standard.
Transmission:
16-speed full power shift
Pressure:
2900 psi 200.0 bar
Valves:
4 to 6
Pump flow:
58.1 gpm 219.9 lpm
85 gpm 321.7 lpm (optional)
SCV flow:
26.4 gpm 99.9 lpm
36 gpm 136.3 lpm (optional)
Rear Type:
IVN/III
Rear lift:
16000 lbs 7257 kg
Drawbar:
Cat. 4 standard
Cat. 3 optional
Rear PTO:
independent
Rear RPM:
1000 (1.75)
AGCO POWER
turbocharged diesel
7-cylinder 28-valve
liquid-cooled
Displacement:
598 ci 9.8 L
Bore/Stroke:
4.370×5.709 inches 111 x 145 mm
Emissions:
Tier IV
Emission control:
selective catalytic reduction (SCR)
Power (gross):
400 hp 298.3 kW
Maximum Power:
431 hp 321.4 kW
Rated RPM:
2100
Torque:
1417 lb-ft 1921.5 Nm
Torque RPM:
1500
Starter volts:
12
Transmission:
Caterpillar
Type:
full power shift
Gears:
16 forward and 4 reverse
Clutch:
hydraulic wet disc
Challenger MT775E Dimensions
Gauge:
72 to 88 inches182 to 223 cm
Gauge:
80 to 120 inches203 to 304 cm (optional)
Gauge:
120 to 160 inches304 to 406 cm (optional)
| Challenger MT775E Weight | |
| Shipping: | 30131 lbs 13667 kg |
| Max capacity: | 39000 lbs 17690 kg |
| Max Drawbar: | 10000 lbs 4536 kg (Cat 3) |
| 12000 lbs 5443 kg (Cat 4) |
Challenger MT775E Tests
OCED Tractor Test 2089
| OCED Tractor Test 2089 | |
| Diesel 16-speed crawlerMay 22 – June 9, 2014Link: OCED Tractor Test 2089 file | |
| PTO performance | |
| Max power: | 374.43 hp 279.2 kW |
| Fuel use: | 20.2 gal/hour 76.5 l/hour |
| Power at rated engine speed: | 334.69 hp 249.6 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Power at rated PTO speed: | 363.92 hp 271.4 kW |
| Fuel use: | 21.3 gal/hour 80.6 l/hour |
| Drawbar performance | |
| Max power: | 297.83 hp 222.1 kW |
| Fuel use: | 20.8 gal/hour 78.7 l/hour |
| Gear 8 used for power test. | |
| Max pull: | 31204 lbs 14154 kg |
| Gear 4 used for pull test. |
FAQ
Is Challenger MT775E a good tractor?
The Challenger MT775E is one of the great tractors in the Challenger (a part of AGCO) stable, and it has earned Challenger (a part of AGCO) a fantastic reputation.
How much oil does a Challenger MT775E take?
Check out the Challenger MT775E oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year Challenger (a part of AGCO) made the MT765E
The Challenger MT775E was an agricultural tractor model made from 2014 – 2017
