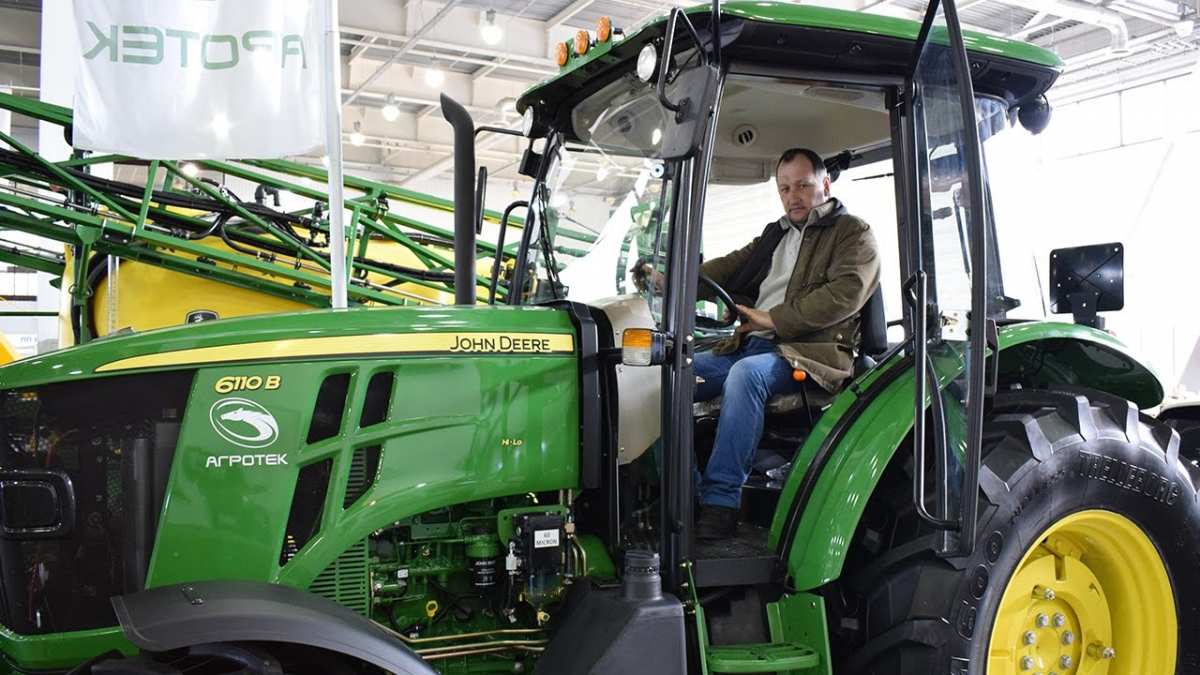

Operating features, benefits
John Deere 6110B tractor designers have thought through the design to the smallest detail. The machine can handle different types of topsoil tillage, heavy trailer transportation and off-road transportation. At the same time, the steering process does not tire the tractor driver – it is facilitated by an ergonomically designed and optimally designed operator’s cabin. Some other significant advantages of the 6110B:
- continuous, trouble-free operation in all operating conditions;
- optimal wheel load distribution;
- power pack with power reserve;
power pack
- Smooth speed change;
- Precision farming system usability.
Powerful engine, special transmission with synchronized gear system, reliable clutch ensure intensive operation of the tractor under extreme loads. Economical operation is achieved by the perfect high-pressure fuel injection system (CommonRail).
The operator’s comfort is maximised by a cab with extended interior space, low noise levels, excellent visibility, comfortable controls and a shock-absorbing seat. The cabin is supplied with air-conditioned or heated cleaned air.
Optimal dimensions and oversized wheels contribute to the high manoeuvrability and passability of the 6110B. In combination with the correct weight distribution (ballasting flexibility), maximum ground adhesion is achieved. The tractor of this model is capable of performing complex agricultural and other similar works.
The design allows the machine to be equipped with a front loader with a mechanical levelling system. The combination of attachments and front loader makes the 6110B universal. It can easily handle loads of up to one tonne (powerful hydraulic system). The suspension system is used to transport various trailers and other agricultural machinery.
The availability of a rear power take-off (PTO) significantly extends the machine’s capabilities. The tractor is connected to various mechanisms for agrotechnical processing of tilled crops.
The AUTOTRAC automatic driving system (optional) with the possibility of setting and monitoring standard operating modes of the machine (precision farming system) is provided.
Long uninterrupted operation of the 6110B is guaranteed if the rules of operation are observed and maintenance work is carried out on time. Tractor is not difficult to maintain. Access to controlled devices, mechanisms, assemblies, systems, pouring tanks, measuring probes is maximally facilitated.
Технические данные трактора John Deere 6110R/6120R/6130R/6135R/6145R/6155R :
| Модель | John Deere 6110R | John Deere 6120R | John Deere 6130R | John Deere 6135R | John Deere 6145R | John Deere 6155R |
| Годы производства | 2016- | 2016- | 2016- | 2016- | 2016- | 2016- |
| Модель / тип двигателя | PSS | PSS | PSS | PSS | PVS | PVS |
| Количество цилиндров / турбонаддув | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI |
| Объем двигателя (см3) | 4530 | 4530 | 4530 | 4530 | 6788 | 6788 |
| Размер поршня / ход (мм) | 106,5×127 | 106,5×127 | 106,5×127 | 106,5×127 | 106,5×127 | 106,5×127 |
| Максимальная мощность двигателя (л.с.) / об / мин | 102(122)/2100 | 110(129)/2100 | 119(138)/2100 | 126(156)/2100 | 135(173)/2100 | 143(181)/2100 |
| Крутящий момент (Нм) / об / мин | 515/1600 | 562/1600 | 609/1600 | 632/1600 | 677/1600 | 724/1600 |
| Количество передач (перед + зад) | 24+24 | 24+24 | 24+24 | 24+24 | 20+20 | 20+20 |
| Количество синхронизированных передач (перед + зад) | 24+24 | 24+24 | 24+24 | 24+24 | 20+20 | 20+20 |
| Скорость-Shift | — | — | — | — | — | — |
| Тип реверса | hydr | hydr | hydr | hydr | hydr | hydr |
| Скорость движения (км / ч) | 1,5-40 | 1,5-40 | 1,5-40 | 2,4-40 | 2,4-40 | 2,4-40 |
| Максимальная скорость движения (км / ч) | 40 (50) | 40 (50) | 40 (50) | 40 (50) | 40 (50) | 40 (50) |
| Производительность гидравлического насоса (л / мин) | 80 (114) | 80 (114) | 80 (114) | 80 (114) | 80(114) | 80 (114) |
| 3-точечное управление сцепкой | ehr | ehr | ehr | ehr | ehr | ehr |
| Максимальная нагрузка на трехточечную навеску (кг) | 5300 | 5300 | 6000 | 6800 | 8100 | 8100 |
| Скорость ВОМ (об / мин) | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Тип дискового тормоза (сухой / мокрый) | — | — | — | — | — | — |
| Тип управления тормозной системой | — | — | — | — | — | — |
| Радиус поворота 2WD (м) | — | — | — | — | — | — |
| Радиус поворота 4WD (м) | 10,88 | 10,94 | 10,94 | 11,28 | 12,32 | 12,62 |
| Переднее колесо 2WD | — | — | — | — | — | — |
| Переднее колесо 4WD | 420/85R24 | 420/85R24 | 420/85R24 | 380/70R28 | 420/85R28 | 420/85R28 |
| Заднее колесо 2WD | — | — | — | — | — | — |
| Заднее колесо 4WD | 460/85R38 | 460/85R38 | 460/85R38 | 480/70R38 | 520/70R38 | 520/70R38 |
| Общий вес 2WD (кг) | — | — | — | — | — | — |
| Общий вес 4WD (кг) | 6000 | 6100 | 6200 | 6400 | 6900 | 7100 |
| Общая высота с кабиной (см) | 280 | 280 | 280 | 295 | 295 | 295 |
| Общая длина (см) | 454 | 454 | 454 | 493 | 493 | 493 |
| Общая ширина (см) | 258 | 258 | 258 | 277 | 277 | 277 |
| Емкость топливного бака (л) | 225+AB13 | 225+AB13 | 225+AB13 | 305+AB16 | 312+AB16 | 312+AB16 |
| Уровень шума в салоне (дБ) | 71 | 71 | 71 | 71 | 71 | 71 |
Также проверьте спецификации :
- John Deere 6110M/6120M/6130M/6135M/6145M/6155M/6175M/6195M
- John Deere 6115M/6125M/6140M/6150M/6170M
- John Deere 6120/6220/6320/6420/6420 S
- John Deere 6130/6230/6330/6430
- John Deere 6170R/6190R/6210R/6175R/6195R/6215R/6230R/6250R
- John Deere 6200 SE/6400 SE
- John Deere 6506/6600/6800/6900
- John Deere 6510/6610/6810/6910/6910 S
- John Deere 6520/6620/6820/6920
- John Deere 6534/6530/6630/6830/6930
Джон Дир — крупный американский производитель сельскохозяйственной техники. Первой машиной, выпущенной в 1836 году, был плуг, облегчавший обработку почвы. В 1868 году компания была зарегистрирована как Deere & Company, а в 1958 году — как John Deere-Delaware Company. Машины John Deere считаются надежными и, как следствие, чрезвычайно популярными.
#John Deere 6110R технічна характеристика #John Deere 6110R cпецификация #John Deere 6110R характеристики #John Deere 6110R мнения #John Deere 6120R технічна характеристика #John Deere 6120R cпецификация #John Deere 6120R характеристики #John Deere 6120R мнения #John Deere 6130R технічна характеристика #John Deere 6130R cпецификация #John Deere 6130R характеристики #John Deere 6130R мнения #John Deere 6135R технічна характеристика #John Deere 6135R cпецификация #John Deere 6135R характеристики #John Deere 6135R мнения #John Deere 6145R технічна характеристика #John Deere 6145R cпецификация #John Deere 6145R характеристики #John Deere 6145R мнения #John Deere 6155R технічна характеристика #John Deere 6155R cпецификация #John Deere 6155R характеристики #John Deere 6155R мнения
Технические характеристики
| Размеры | |
| Передняя ось Center | MFWD/TLS axle under differential housing с 540/65R24 tires: 500 мм 19.6 дюймов |
| Колесная база — 2wd | 2580 мм |
| Колесная база — Mfwd | 2580 мм |
| Двигатель | |
| Family | HJDXL06.8302 |
| Тип двигателя | Дизель, рядный, 4-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
| Номинальная скорость | 2100 rpm об/мин |
| Номинальная мощность | 97/68EC: 81 kW 110 hp |
| Rated Мощность ВОМ | 64 kW 86 hp |
| ВОМ Запас по крутящему моменту | 40 percent |
| Двигатель Максимальный крутящий момент | At 1600 rpm: 515 Nm 380 lb-ft |
| Рабочий объем | 4.5 л. |
| Подача воздуха в двигатель | Турбонаддув, fixed geometry first stage-variable geometry second stage, air-до-air aftercooling and cooled exhaust gas recirculation |
| Описание | John Deere PowerTech PSS |
| Уровень выбросов | 4 |
| After Treatment Тип | DOC/DPF/SCR |
| Емкости | |
| Топливный бак — Дизель | 195 л. |
| Объем масла в картере | 16 л. |
| Система охлаждения | 22 л. |
| 13 л. | |
| Трансмиссия-Гидравлическая система | PowrQuad, Автомат.Quad: 53 L 14 U.S. gal. IVT: 60 L 15.9 U.S. gal. |
| Электрика | |
| Генератор Размер | Станд.: 120 amp Опц.: 200 amp |
| Батарея Варианты | 12 V |
| Всего Cold-Cranking Amps | 1200 CCA |
| Трансмиссия | |
| Тип трансмиссии | Станд.: 20 Speed Автомат.Quad PLUS ECO (40K) Опц.: 16 speed МощностьQuad PLUS 20 speed Автомат.Quad PLUS ECO (50K) Бесступенчатый transmission (IVT) 0.050-42 км/ч 0.030-26 миль/ч Бесступенчатый transmission (IVT) 0.050-50 км/ч 0.030-31 миль/ч |
| Погрузчик | |
| Loader | 620R 640R |
| Макс. Подъем Высота | 620R mechanical self-leveling: bucket level: 3884 мм 153 in. 620R non self-leveling: bucket level: 3884 мм 640R mechanical self-leveling: bucket level: 3911 мм 124 in. 640R non self-leveling: bucket level: 3911 мм |
| Шины | |
| Wheel Tread Диапазон | MFWD: 1524-2235 мм 60-88 in. 2WD: 1524-2235 мм 60-80 in. Triple link suspension (TLS): 1524-2235 мм |
| Вес | |
| База Machine Вес | Всего TLS, AQ, 600/65R38, 540/65R24, shipping fuel, передние weight support: 5470 kg 12059 lb TLS, IVT, 600/65R38, 540/65R24, shipping fuel, передние weight support: 6091 kg 13428 lb |
| Макс. Permissible Вес | 8950 кг |
| Передняя ось | |
| Передняя ось Тип | Станд.: MFWD Опц.: 2WD Triple link suspension (TLS) |
| Грузоподъемность на макс. высоте | 620R mechanical self-leveling: measured at 800 мм ahead of pivot: 2181 kg 4808 lb 620R non self-leveling: measured at 800 мм ahead of pivot: 1726 kg 3805 lb 640R mechanical self-leveling: measured at 800 мм ahead of pivot: 2189 kg 4826 lb 640R non self-leveling: measured at 800 мм ahead of pivot: 1757 kg 3874 lb |
| Передняя ось Блокировка дифференциала | 2WD: none MFWD: limited slip Triple link suspension (TLS): limited slip Triple link suspension (TLS) с brakes: full-locking electrohydraulic |
| Гидравлика | |
| Номинальная мощность насоса | Станд.: 45 cc pump: 114 л/мин 30 gpm |
| Scv Управление | Механический |
| Тип гидравлики | С закрытым центром, pressure/с компенсацией по расходу |
| Available Flow At A Одиночный Зад. Scv | 100 л/мин 26 gpm |
| Зад. Hitch | |
| Hitch Категория (Sae Designation) | Станд.: Категория 2/3N: 2532 kg 5582 lb Опц.: Категория 2/3N: 3371 kg 7432 lb |
| Sensing Тип | Электрогидравлический |
| Зад. Мощность Take -Off (ВОМ) | |
| Зад. Мощность Take -Off (ВОМ) Тип | Независимый Станд.: 35 мм (1.375 in) 540, 1000 rpm reversible shaft Опц.: 35 мм (1.375 in) 540, 540E, 1000 rpm reversible shaft |
| Двигатель Rpm (At Rated Скорость ВОМs) | 1967 engine rpm at 540 rpm PTO 1496 engine rpm at 540E rpm PTO 1962 engine rpm at 1000 rpm PTO |
| ВОМ Actuation | Электрогидравлический |
| Задняя ось | |
| Тип главной передачи | Внутр. планетарная three pinion |
| Зад. Блокировка дифференциала | Full-locking electrohydraulic |
| Задняя ось Тип | Станд.: Flange: 8 position steel колеса Опц.: Flange: 2 position steel колеса 2 position steel колеса: 79.45 x 2555 мм 3.1 x 100.6 in. 2 position cast колеса: 79.45 x 2555 мм |
Technical features
High consumer properties of the universal wheeled tractor John Deere 6110B are determined by a well-thought-out design, use of quality and efficient units, units, systems and other structural elements.
Motor power
The tractor is equipped with a 4-cylinder PowerTech M diesel engine with a rated output of 110 hp. (81 kW) with electronic control of high pressure fuel injection and charge air cooling. Reliable operation at power levels is ensured by an efficient cooling system.
Transmission options
TOP SHAFT synchronized transmission with dry or wet clutch (Standart or Premium version) ensures smooth operation of the power plant.
Bridges
The front and rear flanged axles with a standard 1710 mm front track and 1729 mm rear axles are installed. The track width can be adjusted. A spacer hub can be fitted.
Complete mechanical rear axle differential lock directly from the operator’s cab.
Electric system
A 12 V battery type power supply system with a 90 A generator was installed. Battery provides cold engine start with maximum current up to 960 A (CCA).
Rule control
Hydrostatic steering with amplifier is installed. The standard steering column is non-adjustable, the Premium version is tiltable and retractable.
Hydraulic system
The hydraulic system is supplied by a hydraulic pump with a nominal flow rate of 60 l/min and a maximum pressure of 200 bar. The hydraulic selective control valves are controlled by means of a lever.
Category II rear linkage with ball heads, load and depth control. Load capacity is from 3300 to 5400 kg.
Trailer hitch and trailer hitch
A swivel traction bar with a 31 mm pin (category II) and a maximum static load of 1900 kg on the coupling is installed. The trailer coupling can be installed with a maximum vertical load of 2000 kg.
Rear PTO
The rear power take-off shaft can be with a dry clutch and can be operated manually (Standart version) or with wet clutch and electro-hydraulic actuation (Premium) at 540 or 1000 rpm.
Forward PTO
Optional front PTO with electro-hydraulic actuation and multi-disc modular clutch (available through Laforge). Speed of rotation is 1000 rpm at crankshaft speed of 2200 rpm.
Cabin
Spacious cabin with two doors, tilt protection, with a glazing area of 5.2 square meters. Ventilation, heating, air conditioning.
Dimensions, weight
The total height is 2830 mm, width – 2220 mm, length – 4415 mm (without load). Wheelbase – 2560 mm, ground clearance – 480 mm. Weight of Standart tractor is 4290 kg, Premium – 5050 kg.
Carrying capacity
The maximum payload of the rear linkage is 4100 kg. Load capacity of the mechanical self-levelling front loader is 1057 kg with a maximum lifting height of 3438 mm.
Different
The tractor is equipped with systems and devices in accordance with GOST. Additionally it is possible to install AutoTrac Universal navigation system (automatic driving), display, pneumatic braking system for trailer (options).
John Deere 6110B Other Features
Dual
Power Steering
3650 kg
4WD

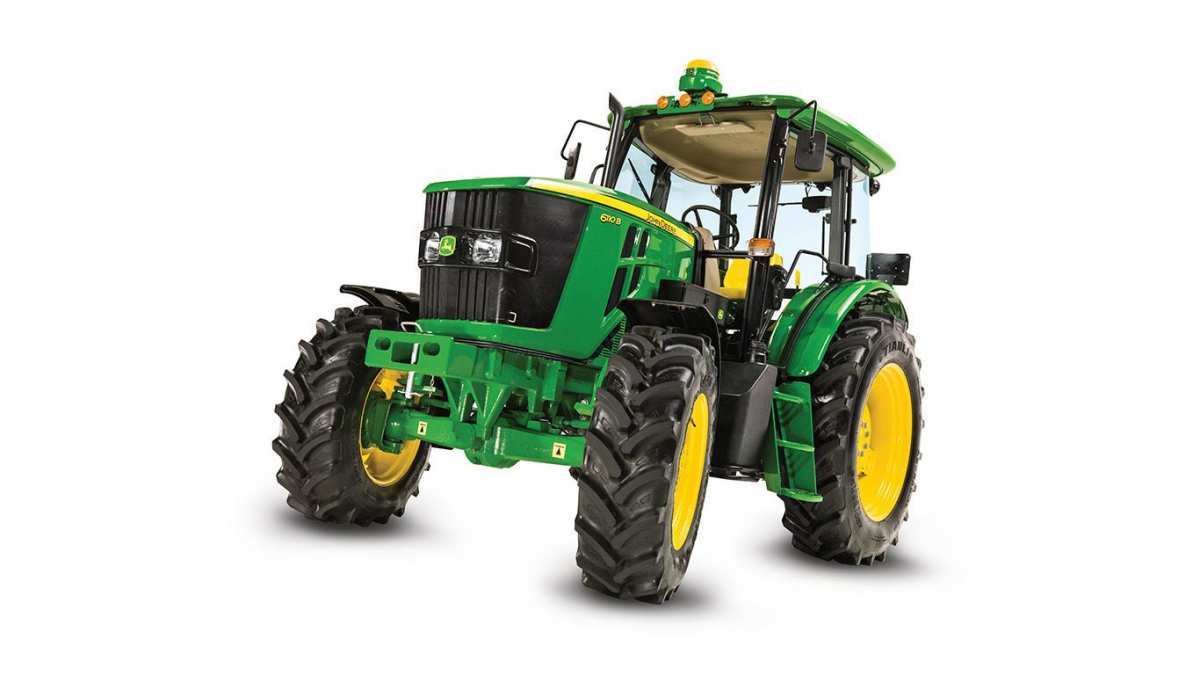

John Deere 6110B tractor on road Price in India 2023
John Deere 6110B is one of the best tractor model of John Deere Tractor. It is very affordable and reasonable model in its segment. John Deere 6110B price starts from Rs. 2820000 in India 2023. In this Price Range Company is giving world class features and latest design. Fuel efficient engine give more profitability to farmers.John Deere 6110B price set according to farmer’s budget. This price range targets also marginal and significant budgeted farmers also. With advanced technology and innovative features, company is focusing on providing best in class tractor to the Indian farmer. This affordable and budgeted tractor is helping farmers to get more profit from farming. Price range of this models is very reasonable so every farmer can afford it and do not worry about budget.
About John Deere 6110B Engine and Transmission
John Deere 6110B comes with very powerful and fuel efficient engine and transmission.110 HP engine makes this tractor very powerful. Engine capacity of this tractor is 4500 cc which is generating 2400 RPM. John Deere 6110B comes with 4 Cylinder engine with Dual element with add-on pre-cleaner air filter system. Cooling system of this tractor is Liquid Cooled
Transmission of this tractor is also very powerful and smooth. It has Synchromesh transmission, which is very smooth and comes with advanced technology. It has Dual clutch with 12 forward and 4 reverse gearbox. Tractor’s speed is 2.9 – 29.4 kmph in forward gear and in reverse it is 5.7 – 30.3 kmph Tractor has best quality battery and alternative system in this.
John Deere 6110B Features
John Deere 6110B comes with best in class features. Tractor has innovative design and latest technological features included. Fuel efficient engine makes this tractor out of the crowd. John Deere 6110B is focusing on providing best in class product with affordable price. Comfort of this tractor is next level while operation work like cultivation, rotavation and haulage.
John Deere 6110B comes with Oil Immersed brakes which give more comfort and safety to the farmer. With smooth brakes, handling of the tractor becomes so easy and comfortable. Steering comes with John Deere 6110B is Power Steering. Steering of this tractor is very smooth and operation friendly. Fuel tank capacity of John Deere 6110B is 220 litres. This capacity gives long time of operation work without any tension of lower fuel.John Deere 6110B gives best in class mileage. It comes with very powerful and fuel efficient engine.
John Deere 6110B has 3650 kgof lifting capacity. Hydraulic power of this tractor is very high so with lifting capacity, you can easily lift any tools with this tractor. If we talk about tyre of John Deere 6110B than it comes with 13.6 X 24 front tyre and 18.4 X 34 rear tyre. This tyre dimension gives more traction while operation work so you can do any operation work easily and comfortably. If we talk about dimension of this tractor, then cache John Deere 6110B has 2,560 mm wheelbase, 4,500 kg weight, 4,410 mm length, 2300 MM width, 470 MM ground clearance and
3604 mm turning radius. Tractor comes with 5000 hr/5 year of warranty and 4WD drive type.
Why TracTruck.com for cache John Deere 6110B?
Tractruck.com is very reliable source of all tractors information like on road price, features, specifications and all other information. TracTruck.com provides on road price of John Deere 6110B with feature and specifications information. In this website you can get exact and reliable information regarding any model of any brands with accurate data. TracTruck.com has largest data base of all tractors with exact feagures.
| John Deere 6110B Engine | |
|---|---|
| No. Of Cylinder | 4 |
| HP Category | 110 HP HP |
| Capacity | 4500 cc |
| Engine Rated RPM | 2400 RPM |
| Air Filter | Dual element with add-on pre-cleaner |
| John Deere 6110B Transmission | |
|---|---|
| Clutch type | Dual |
| Transmission type | Synchromesh |
| Speed min-max | 2.9 – 29.4 kmph |
| Reverse speed min – max | 5.7 – 30.3 kmph |
| Forward Gears | 12 |
| Reverse Gears | 4 |
| Battery | 12 V 135 Ah |
| Alternator | 12 V 90 Amp |
| John Deere 6110B Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning radius with brake | 3604 mm |
| John Deere 6110B Steering | |
|---|---|
| Type | Power Steering |
| Steering Adjustment | YES |
| John Deere 6110B Power Take Off | |
|---|---|
| PTO type | 6 / 21 Spline |
| PTO RPM | 540, 1000 |
| PTO POWER | 94 HP |
| John Deere 6110B Dimensions And Weight Of Tractor | |
|---|---|
| Weight | 4,500 kg |
| Wheelbase | 2,560 mm |
| Overall Length | 4,410 mm |
| Overall Width | 2300 MM |
| Ground Clearance | 470 MM |
| John Deere 6110B Hydraulics | |
|---|---|
| Lift capacity in kg | 3650 kg |
| John Deere 6110B Wheels And Tyres | |
|---|---|
| Front | 13.6 X 24 |
| Rear | 18.4 X 34 |
| John Deere 6110B Other Information | |
|---|---|
| Drive type | 4WD |
