Технические данные трактора John Deere 6534/6530/6630/6830/6930 :
| Модель | John Deere 6530 | John Deere 6630 | John Deere 6830 | John Deere 6930 | John Deere 6534 |
| Годы производства | — | — | — | — | — |
| Модель / тип двигателя | 6068 T 2V-CR | 6068 T 2V-CR | 6068 T 2V-CR | 6068 T 2V-CR | 4045 T 4V-CR |
| Количество цилиндров / турбонаддув | 6TI | 6TI | 6TI | 6TI | 4TI |
| Объем двигателя (см3) | 6788 | 6788 | 6788 | 6788 | 4530 |
| Размер поршня / ход (мм) | 106,5×127 | 106,5×127 | 106,5×127 | 106,5×127 | 106,5×127 |
| Максимальная мощность двигателя (л.с.) / об / мин | 115/2300 | 126/2300 | 135/2100 | 150/2100 | 120/2300 |
| Крутящий момент (Нм) / об / мин | 490/1600 | 526/1600 | 625/1500 | 646/1500 | 490/1500 |
| Количество передач (перед + зад) | 24+24 | 24+24 | 20+20 | 20+20 | 24+24 |
| Количество синхронизированных передач (перед + зад) | 24+24 | 24+24 | 20+20 | 20+20 | 24+24 |
| Скорость-Shift | — | — | — | — | — |
| Тип реверса | hydr | hydr | hydr | hydr | hydr |
| Скорость движения (км / ч) | 1,6-40 | 1,6-40 | 2,5-40 | 2,5-40 | 1,6-40 |
| Максимальная скорость движения (км / ч) | — | — | — | — | — |
| Производительность гидравлического насоса (л / мин) | 81 | 81 | 110 | 110 | 81 |
| 3-точечное управление сцепкой | ehr | ehr | ehr | ehr | ehr |
| Максимальная нагрузка на трехточечную навеску (кг) | 5900 | 6620 | 7400 | 7400 | 5900 |
| Скорость ВОМ (об / мин) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Тип дискового тормоза (сухой / мокрый) | — | — | — | — | — |
| Тип управления тормозной системой | — | — | — | — | — |
| Радиус поворота 2WD (м) | — | — | — | — | — |
| Радиус поворота 4WD (м) | 10,2 | 10,2 | 10,4 | 10,4 | 10,2 |
| Переднее колесо 2WD | — | — | — | — | — |
| Переднее колесо 4WD | 14.9R28 | 14.9R28 | 16.9R28 | 16.9R28 | 14.9R28 |
| Заднее колесо 2WD | — | — | — | — | — |
| Заднее колесо 4WD | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 | 18.4R38 |
| Общий вес 2WD (кг) | — | — | — | — | — |
| Общий вес 4WD (кг) | 5230 | 5230 | 5880 | 5880 | 4950 |
| Общая высота с кабиной (см) | 283 | 283 | 290 | 290 | 283 |
| Общая длина (см) | 473 | 473 | 476 | 476 | 473 |
| Общая ширина (см) | 265 | 265 | 265 | 265 | 265 |
| Емкость топливного бака (л) | 207 | 207 | 250 | 250 | 207 |
| Уровень шума в салоне (дБ) | 73 | 73 | 73 | 73 | 71 |
Также проверьте спецификации :
- John Deere 6110M/6120M/6130M/6135M/6145M/6155M/6175M/6195M
- John Deere 6110R/6120R/6130R/6135R/6145R/6155R
- John Deere 6115M/6125M/6140M/6150M/6170M
- John Deere 6120/6220/6320/6420/6420 S
- John Deere 6130/6230/6330/6430
- John Deere 6170R/6190R/6210R/6175R/6195R/6215R/6230R/6250R
- John Deere 6200 SE/6400 SE
- John Deere 6506/6600/6800/6900
- John Deere 6510/6610/6810/6910/6910 S
- John Deere 6520/6620/6820/6920
Джон Дир — крупный американский производитель сельскохозяйственной техники. Первой машиной, выпущенной в 1836 году, был плуг, облегчавший обработку почвы. В 1868 году компания была зарегистрирована как Deere & Company, а в 1958 году — как John Deere-Delaware Company. Машины John Deere считаются надежными и, как следствие, чрезвычайно популярными.
#John Deere 6530 технічна характеристика #John Deere 6530 cпецификация #John Deere 6530 характеристики #John Deere 6530 мнения #John Deere 6630 технічна характеристика #John Deere 6630 cпецификация #John Deere 6630 характеристики #John Deere 6630 мнения #John Deere 6830 технічна характеристика #John Deere 6830 cпецификация #John Deere 6830 характеристики #John Deere 6830 мнения #John Deere 6930 технічна характеристика #John Deere 6930 cпецификация #John Deere 6930 характеристики #John Deere 6930 мнения #John Deere 6534 технічна характеристика #John Deere 6534 cпецификация #John Deere 6534 характеристики #John Deere 6534 мнения
John Deere 6930 Specs
John Deere 6930 Engine:
| Engine | John Deere 6068HL281 turbocharged diesel 6-cylinder 12-valve liquid-cooled 413.7 ci |
| Bore/Stroke: | 4.19×5.00 inches |
| Emissions: | Tier III |
| Rated Power (ECE R24): | 150 hp |
| Rated Power (EC 97/98): | 155 hp |
| Maximum Power (ECE R24): | 158 hp |
| Maximum Power (EC 97/68): | 163 hp |
| Fuel system: | high-pressure common rail injection |
| Cooling system: | viscous fan |
| Air cleaner: | dry element |
| Rated RPM: | 2100 |
| Idle RPM: | 850-2250 |
| Operating RPM: | 1500-2100 |
| Torque: | 513 lb-ft |
| Torque RPM: | 1500 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4 hp |
| Oil capacity: | 20.6 qts |
| Oil change: | 500 h |
| Coolant capacity: | 29.6 qts |
| Coolant change: | 3000 h |
| Intake valve clearance: | 0.014 inches |
| Exhaust valve clearance: | 0.018 inches |
John Deere 6930 Transmission
| Transmission: | John Deere PowrQuad Plus |
| Type: | partial power shift |
| Gears: | 20 forward and reverse |
| Clutch: | dual 225mm wet disc PermaClutch |
| Oil capacity: | 52.8 qts |
John Deere 6930 Dimensions
| Weight (shipping): | 12,420 lbs |
| Weight (max capacity): | 23,150 lbs |
| Rear axle load: | 16,535 lbs |
| Wheelbase: | 104.3 inches |
| Length: | 187.3 inches |
| Width: | 93.8 inches |
| Height: | 115.1 inches |
| Front tread: | 63.9 to 83.3 inches |
| Rear tread: | 63.9 to 79.6 inches |
John Deere 6930 Power
| Engine (gross): | 155 hp |
| Engine (net): | 150 hp |
| Engine (max): | 163 hp |
| PTO (claimed): | 135 hp |
John Deere 6930 Mechanical
| Chassis: | 4×4 MFWD 4WD |
| Differential lock: | rear electro-hydraulic wet disc |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. |
John Deere 6930 Hydraulics
| Type: | constant flow |
| pressure and flow compensated (PFC) optional | |
| Capacity: | 13.2 gal |
| Pressure: | 2,901 psi |
| Pump flow: | 21.4 GPM |
| PFC Pump flow: | 29.1 GPM |
John Deere 6930 PTO
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E/1000 |
| Engine RPM: | 540@1995 540E@1743 1000@1995 |
| Front RPM: | 1000 |
| Engine RPM: | 1000@1995 |
John Deere 6930 3 Point Hitch
| Rear Type: | II/IIIN |
| Control: | load and depth control with electronic lower-link sensing |
| Rear lift: | 16,730 lbs |
| 18,880 lbs (optional) |
John Deere 6930 Electrical
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Optional Charging amps: | 154 |
Also Check:
- Kubota M5700
- John Deere 8420
- Kubota B2100
- Kubota M5660SU
- Kubota M5500
Final Words
That was all about the John Deere 6930 Tractor Price, Specs, Review, and Key Features, but if you have any queries regarding this post, then please comment below in the comment box, We will solve your problem as soon as possible, thanks for visiting our site and stay tuned to our site for more new stuff like this.
Maintenance
As with any tractor, it is important to perform regular maintenance to ensure it stays in good working order. Here are some of the key points to look out for when servicing the John Deere 6930:
- Regular oil changes
- Air filter check
- Hydraulic fluid check
- Checking the brakes
- Tire check
By regularly checking and maintaining these items, you can ensure that your John Deere 6930 always remains in top condition.
Prices for spare parts
It is also important to know how much spare parts for your tractor cost, should you need them. Here are some of the prices for spare parts of the John Deere 6930:
- Air filter: 20-30 euros
- Oil filter: 15-25 euros
- Brake pads: 50-100 euros
- hydraulic filter: 30-50 euros
Prices may vary depending on supplier and region.
John Deere 6930 Specifications
Here is a summary of the specifications of the John Deere 6930 tractor:
| Technical data | Specifications |
|---|---|
| Performance | 165 HP |
| Displacement | 6.8 liters |
| Cylinder | 6 |
| Transmission | 20 forward gears, 20 reverse gears |
| Top speed | 50 km/h |
| hydraulic system | 114 liters/min |
| Lifting power | 7,280 kg |
| Weight | 6,000 kg |
As you can see, the John Deere 6930 is a powerful tractor with an impressive lifting capacity and a large hydraulic system. Now we will take a closer look at each aspect of the tractor.
engine
The John Deere 6930 is powered by a 6.8 liter 6-cylinder engine. Here is a table with the technical data of the engine:
| Properties | values |
|---|---|
| Rated power | 165 HP |
| Max. torque | 674 Nm |
| Number of cylinders | 6 |
| Cooling system | liquid |
| fuel tank | 305 liters |
This engine is very efficient and can do a large amount of work without using much fuel.
Transmission
The John Deere 6930 has a 20-speed gearbox with a speed of up to 50 km/h. Here is a table with the technical data of the gearbox:
| Properties | values |
|---|---|
| Number of gears | 20 forward gears, 20 reverse gears |
| Speed | Up to 50 km/h |
| clutch | wet or dry clutch |
The gearbox is very robust and offers a wide range of gears, so you always have the right speed for every job.
Hydraulic system
The hydraulic system of the John Deere 6930 is very powerful, with a flow rate of 114 liters per minute. Here is a table with the technical data of the hydraulic system:
| Properties | values |
|---|---|
| Flow rate | 114 liters/min |
| hydraulic pressure | 200 bar |
| lifting capacity | 7,280 kg |
The hydraulic system offers high lifting power and is able to move heavy loads. It is ideal for jobs such as lifting heavy bales or towing trailers.
Dimensions and weights
The John Deere 6930 is a medium-sized tractor weighing 6,000 kg. Here are the dimensions of the tractor:
| Properties | values |
|---|---|
| Length | 4.72 m |
| width | 2.55 m |
| Height | 3.04 m |
| Wheelbase | 2.77 m |
| Ground clearance | 0.43 m |
The tractor is built robustly and stably and offers sufficient ground clearance to work without problems even on uneven terrain.
cabin
The cab of the John Deere 6930 is spacious and offers the driver a comfortable working environment. Here are some features of the cabin:
- Air conditioning
- Heating
- Radio
- Adjustable driver’s seat
- Electronically controlled mirrors

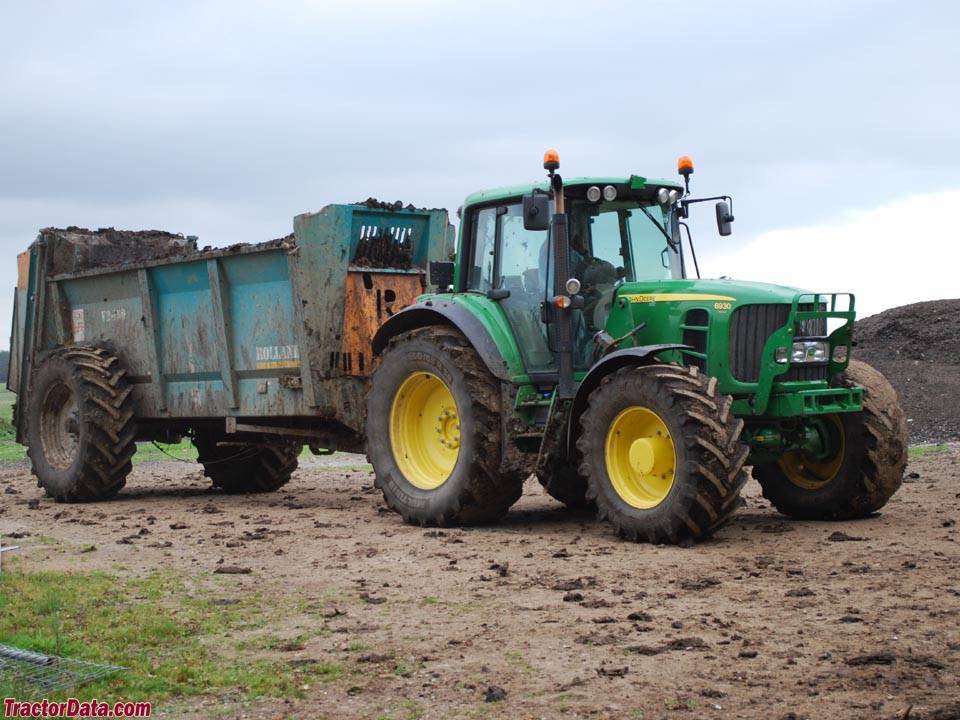

John Deere 6930
The cab also offers a good view of the working field and is equipped with the latest technology to increase working comfort.
Tires
The John Deere 6930 is equipped with tires of size 540/65R28 at the front and 650/65R38 at the rear. Here are some features of the tires:
- Wide profile for better traction
- Low rolling resistance for higher efficiency
- High load capacity for heavy loads
The tires provide good traction and are strong enough to move heavy loads.
FAQ
Is John Deere 6930 Premium a good tractor?
The John Deere 6930 Premium is one of the great tractors in the John Deere stable, and it has earned John Deere a fantastic reputation.
How much oil does a John Deere 6930 Premium take?
Check out the John Deere 6930 Premium oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year John Deere made the 6830 Premium
The John Deere 6930 Premium was an agricultural tractor model made from 2006 – 2011
John Deere 6930 Premium Engine detail
John Deere 6068HL480
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
413.7 ci 6.8 L
Bore/Stroke:
4.19×5.00 inches 106 x 127 mm
Emissions:
Tier III
Emission control:
exhaust gas recirculation (EGR)
Rated Power (ECE R24):
150 hp 111.9 kW
Rated Power (EC 97/98):
155 hp 115.6 kW
Maximum Power (ECE R24):
161 hp 120.1 kW
Maximum Power (EC 97/68):
167 hp 124.5 kW
Fuel system:
high-pressure common rail injection
Cooling system:
viscous fan
Air cleaner:
dry element
Rated RPM:
2100
Idle RPM:
845-2255
Operating RPM:
1300-2100
Torque:
507 lb-ft 687.5 Nm
Torque RPM:
1400
Firing order:
1-5-3-6-2-4
Starter volts:
12
Starter power:
4 hp 3.0 kW
Oil capacity:
20.6 qts 19.5 L
Oil change:
500 h
Coolant capacity:
29.6 qts 28.0 L
Coolant change:
1500 h
Intake valve clearance:
0.014 inches 0.356 mm
Exhaust valve clearance:
0.018 inches 0.457 mm
John Deere 6930 Premium Production
Manufacturer:
John Deere
Ground:
negative
Charging system:
alternator
Battery volts:
12
Chassis:
4×4 MFWD 4WD
Brakes:
hydraulic wet disc
Cab:
Cab standard with air-conditioning.
Transmissions:
20-speed partial power shift
32-speed partial power shift
infinitely variable transmission (IVT)
Fuel:
66 gal 249.8 L
Optional Fuel:
85.9 gal 325.1 L
Hydraulic system:
14.8 gal 56.0 L
IVT Hydraulic system:
17.4 gal 65.9 L
Type:
load-sensing pressure-flow compensating (PFC)
Capacity:
14.8 gal 56.0 L
IVT Capacity:
17.4 gal 65.9 L
Pressure:
2,901 psi 200.0 bar
Valves:
4 (Max)
Pump flow:
15.9 gpm 60.2 lpm
Optional Pump flow:
29.1 gpm 110.1 lpm
Rear Type:
IIIN
Control:
15.9
Optional Control:
29.1
Rear lift (at ends):
18,880 lbs 8563 kg
Rear PTO:
independent
Clutch:
electro-hydraulic wet disc
Rear RPM:
540/540E/1000
Engine RPM:
540@1995540E@17431000@1995
Front RPM:
1000
Engine RPM:
1000@1995
John Deere 6068HL480
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:
413.7 ci 6.8 L
Bore/Stroke:
4.19×5.00 inches 106 x 127 mm
Emissions:
Tier III
Emission control:
exhaust gas recirculation (EGR)
Rated Power (ECE R24):
150 hp 111.9 kW
Rated Power (EC 97/98):
155 hp 115.6 kW
Maximum Power (ECE R24):
161 hp 120.1 kW
Maximum Power (EC 97/68):
167 hp 124.5 kW
Fuel system:
high-pressure common rail injection
Cooling system:
viscous fan
Air cleaner:
dry element
Rated RPM:
2100
Idle RPM:
845-2255
Operating RPM:
1300-2100
Torque:
507 lb-ft 687.5 Nm
Torque RPM:
1400
Firing order:
1-5-3-6-2-4
Starter volts:
12
Starter power:
4 hp 3.0 kW
Oil capacity:
20.6 qts 19.5 L
Oil change:
500 h
Coolant capacity:
29.6 qts 28.0 L
Coolant change:
1500 h
Intake valve clearance:
0.014 inches 0.356 mm
Exhaust valve clearance:
0.018 inches 0.457 mm
Transmission:
John Deere PowrQuad Plus
Type:
partial power shift
Gears:
20 forward and reverse
Clutch:
PermaClutch II wet disc
Oil capacity:
59.2 qts 56.0 L
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.
John Deere 6930 Premium Dimensions
Wheelbase:
104.3 inches 264 cm
Length:
187.3 inches 475 cm
Width:
93.8 inches 238 cm
Height:
114.4 inches 290 cm
Front tread:
63.9 to 83.3 inches 162 to 211 cm
Rear tread:
63.9 to 79.6 inches162 to 202 cm
| John Deere 6930 Premium Weight | |
| Shipping: | 12,960 lbs 5878 kg |
| Max capacity: | 24,250 lbs 10999 kg |
| Max rear axle: | 17,185 lbs 7795 kg |
FAQ
Is John Deere 6930 Premium a good tractor?
The John Deere 6930 Premium is one of the great tractors in the John Deere stable, and it has earned John Deere a fantastic reputation.
How much oil does a John Deere 6930 Premium take?
Check out the John Deere 6930 Premium oil capacity and oil type in the engine specs section as it may vary across the engines. Keep in mind, that older models might have their oil capacity increased over time. You may compare between the early and late oil capacity.
Do tractors have VIN numbers?
Every tractor has a VIN number. The number is usually engraved below the driver’s seat. Tractor manufacturers put the number in different places on the tractor body.
What was the last year John Deere made the 6830 Premium
The John Deere 6930 Premium was an agricultural tractor model made from 2006 – 2011
